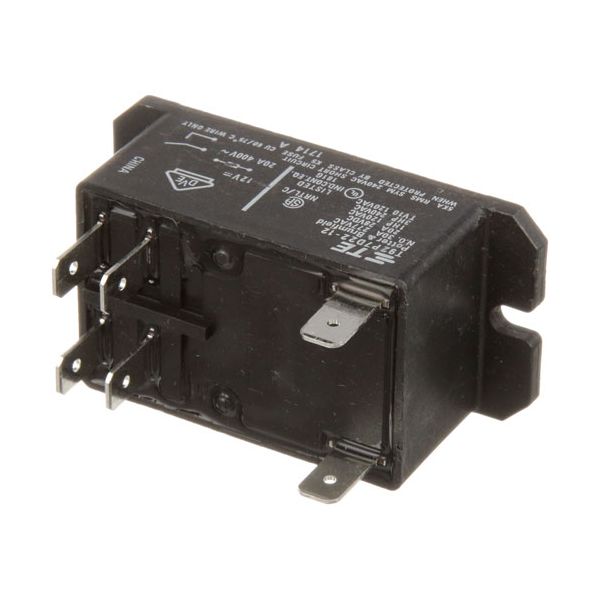

A heavy-duty electrical switching component used in commercial kitchen equipment, this power relay is responsible for controlling high-current circuits through a low-voltage control signal. Built with a double-pole single-throw (DPST) normally open configuration, it allows two circuits to be activated simultaneously when energized. Operating at 12 VDC control voltage with load ratings of up to 30A at 277V and 20A at 28VDC, it is designed to handle demanding electrical loads in heating, refrigeration, and cooking systems. Integrated into equipment such as warmers, steamers, grills, and refrigeration units, this relay ensures safe and efficient power distribution to critical components like heating elements and motors. When a relay fails, symptoms such as inconsistent heating, equipment not powering on, or interrupted cycles can occur; replacing it helps restore proper electrical switching and system reliability. Its six 1/4-inch terminals and 2-3/8" mounting centers support secure installation and stable connections in high-use commercial environments.
Equipment Compatibility:
Commonly fitted in Traulsen Power Relay, it includes commercial refrigeration units, steamers, fryers, and cooking equipment where controlled electrical switching is required for operational safety and performance. This Power Relay 337-60512-00 is compatible with commercial equipment from leading brands such as Traulsen, Frymaster, Groen, Henny Penny, Star Mfg, Alto-Shaam, and more, where reliable circuit control and load switching are essential for proper equipment function.
Brand Compatibility:
This component replaces multiple cross-reference parts used in commercial equipment from brands such as Traulsen, Frymaster, Groen, Henny Penny, Star Mfg, Alto-Shaam, and more. Complete cross-reference details are provided separately for full compatibility verification.
Product Specifications:
Product Type: Power Relay
Manufacturer: Traulsen
SKU: 337-60512-00
Configuration: DPST (Normally Open)
Control Voltage: 12 VDC
Electrical Rating: 30A at 277V / 20A at 28VDC
Motor Rating: 1HP at 120VAC / 3HP at 240VAC
Terminals: (6) 1/4" tab terminals
Mounting Centers: 2-3/8"
Key Features:
- Enables dual-circuit switching through DPST configuration, allowing simultaneous control of multiple electrical loads.
- Handles up to 30A at 277V and 20A at 28VDC, supporting high-demand commercial equipment applications.
- Operates on 12 VDC control voltage, ensuring compatibility with low-voltage control systems.
- Supports motor loads up to 1HP (120VAC) and 3HP (240VAC), making it suitable for compressors and fans.
- Equipped with six 1/4-inch terminals, providing secure and stable electrical connections.
- Designed with 2-3/8" mounting centers for proper fitment within equipment control panels.
Users commonly report restored electrical switching and more reliable equipment operation after replacing the power relay.
