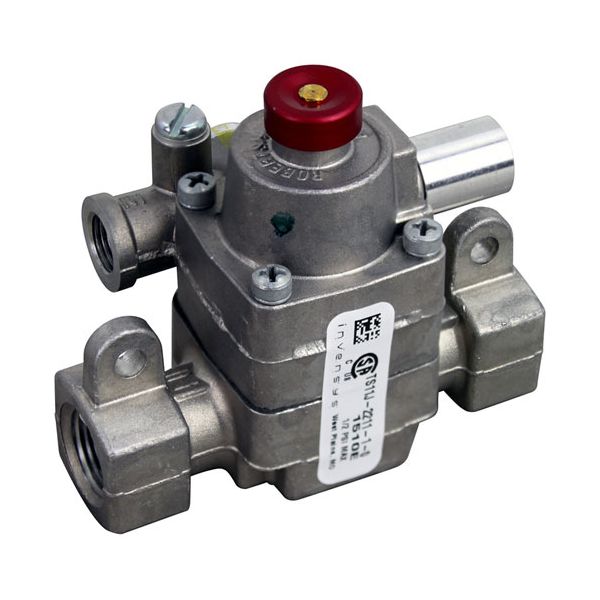

Garland UK28 Safety Valve 1/4" Pilot Fitting 3/8" NPT
Special Price $190.64 Regular Price $293.75
In stock
SKU
UK28
Manufacturer:
The Garland UK28 Safety Valve 1/4" Pilot Fitting 3/8" NPT is a gas control part designed for commercial cooking equipment. It operates by regulating two separate gas channels opening or closing the internal valves, when electrical signals are applied to direct gas to the burner and pilot. The valve is installed along the appliances gas line where controlled flow is required for proper ignition and stable heat output. As part of the equipments management system it supports consistent burner operation, maintains even heat delivery and ensures, proper performance during standard commercial cooking cycles.
Dimensions
- Length: 3.25 In
- Width: 3 In
- Height: 2 In
- Weight: 0.7 lbs
Product Notes
- Ts Safety, Magnet Head And Gas Carrier, J Type
- Gas In/Out 3/8" Npt, Pilot In/Out 1/4" Cct
- Main Gas In And Pilot Gas In On Same Direction.
- Note Same As # 54-1068 But Head Is
- Rotated 180 Degrees Amd Main Gas In And Pilot Gas In
- Are In Opposite Directions.
- Garland Oven 293, Gd-30Rbj, St286.
- Series: 40R, 40/50, G30A, G280, H280, Tg2, Ttg2.
- Hi28
- Montague Oven Series:Grizzly G, G16, G26, Montague Ii,
- R, R16, R26, Vectaire Gas, 115 A,S,X.Z
