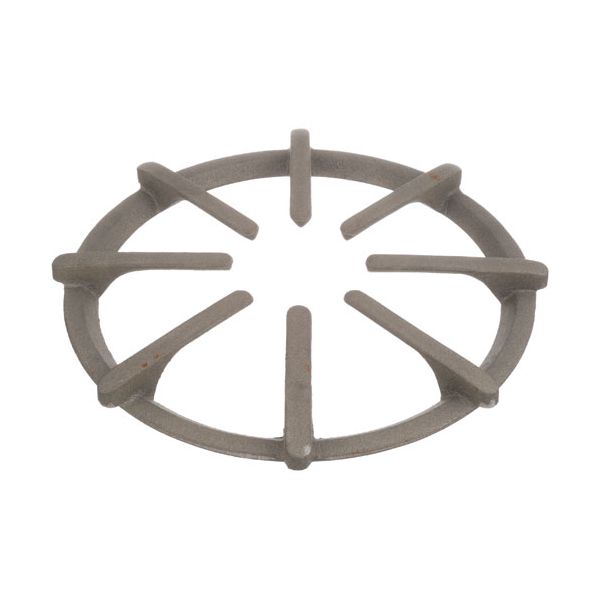

Vulcan Hart VH109432-1 Cast Iron Grate

Be the first to review this product
Special Price $51.51 Regular Price $78.25
In stock
SKU
VH109432-1
Add to Wish List
Griddle & Grill Parts, Griddle & Grill Grates, Shop by manufacturers
Manufacturer:
The Vulcan Hart VH109432-1 Cast Iron Grate is an element that is used to hold cookware over an open flame and lets the heat circulate around the base of the element consistently. It works by keeping the burner and the cooking vessel at a constant height in order to assist in the control of heat transfer during operation. This grate is placed on commercial cooking ranges with direct flame being used to boil, saute, or simmer cooking.which ensures appropriate alignment and assists to ensure the stable thermal distribution.

Dimensions

  • Length: 2.821 In
  • Width: 2.821 In
  • Height: 1.101 In
  • Weight: 10.207 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-vh109432-1-rough-cast-iron-spider-grate-12-3-4-dia-12-ring-dia-8-equal-legs-89653.jpg

Product Notes

  • Rough Cast Iron Spider Grate
  • 12-3/4" Dia, 12" Ring Dia) (Material Ci)
  • 8 Equal Legs
  • Vulcan
  • Range 7845, H45, Sg7845.
  • Series: Gh, Gm, Ghx.
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart VH109432-1 Cast Iron Grate
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Vulcan Hart VH109432-1 Spider Grate?

Clean the grate regularly to remove grease, food residue, and carbon buildup that can affect burner performance. Inspect for cracks or warping from high heat exposure. Ensure proper seating on the burner for stable cookware support and safe operation.

What are common issues with the Vulcan Hart VH109432-1 Spider Grate?

  • Rust formation due to moisture exposure.
  • Cracking under heavy cookware loads.
  • Uneven surface causing unstable pots.
  • Carbon buildup affecting heat distribution.
  • Chipping or surface erosion over time.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and ensure burners are completely cool.

Step2: Remove the old grate from the burner support ring.

Step3: Clean the burner frame surface to remove grease or debris buildup.

Step4: Align the new grate so all legs sit evenly on support points.

Step5: Place it carefully onto the ring and ensure stable seating.

Step6: Check for level placement and no rocking movement.

Step7: Restore gas and test flame distribution for proper burner operation.
