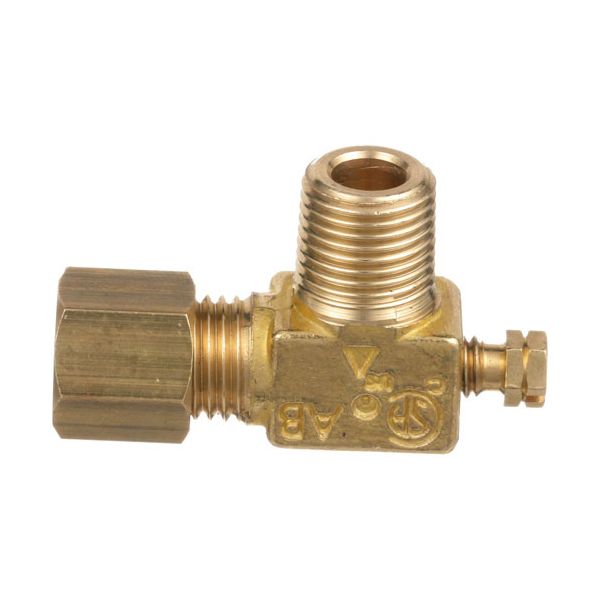

Vulcan Hart VH404193-2 Pilot Valve Adjustable W/1/8 MPT X 3/16 CC 90 DEG

Rating:
5 5 1
1  Review Add Your Review
$11.72
In stock
SKU
VH404193-2
Add to Wish List
Griddle & Grill Parts, Pilot Safety Valves,
Manufacturer:
The Vulcan Hart VH404193-2 Pilot Valve Adjustable 1/8 inch MPT 3/16 inch CC 90 degree regulates the flow of gas to a pilot burner by turning its adjustable mechanism that opens or closes the internal passage to adjust the desired gas flow rate. The gas inlet is the 1/8-inch male pipe thread inlet and the outlet is the 3/16-inch compression fitting at 90 degrees to the pilot assembly. It is fitted in the gas supply line of compatible cooking equipment where a right-angle connection and adjustable pilot gas control are required.

Dimensions

  • Length: 1.5 In
  • Width: 0.75 In
  • Height: 0.375 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-vh404193-2-pilot-adj-valve-w-1-8-mpt-x-3-16-cc-90-deg-adjustable-53895.jpg

Product Notes

  • Pilot Adjustment Valve
  • [ 1/8" Mpt X 3/16" Cct ] Angle - 90 Deg, Adjustable
  • Csa Approved In Canada And U.S.
  • Royal Range
AMERICAN RANGE:
10418, A29300, AMRA29300
APW WYOTT:
ATOSA:
BAKERS PRIDE:
COMSTOCK CASTLE:
DYNAMIC COOKING SYSTEMS:
13029-1, DCS13029-1
GARLAND:
IMPERIAL:
1604, 1609, IMP1609
ROYAL RANGE:
0531-AP7-1, 1625, 531AP7-1, ROY0531-AP7-1, ROY531AP7-1
SOUTHBEND:
TRI-STAR:
311027, AS-311027, TRS311027
Reviews 1
Write Your Own Review
You're reviewing:Vulcan Hart VH404193-2 Pilot Valve Adjustable W/1/8 MPT X 3/16 CC 90 DEG
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Vulcan Hart VH404193-2 Pilot Valve?

Keep the valve clean and free from grease or carbon buildup that can block gas flow. Inspect the pilot orifice for clogging and ensure all connections are secure. Regular testing assists in maintaining accurate ignition performance.

What are common issues with the Vulcan Hart VH404193-2 Pilot Valve?

  • Pilot flame failure or weak ignition.
  • Clogged orifice restricting gas flow.
  • Gas leakage around valve seals.
  • Intermittent pilot operation.
  • Difficulty maintaining steady flame.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and ensure appliance is completely cool.

Step2: Shut down and relieve any remaining gas pressure safely.

Step3: Remove old pilot adjustment valve from the gas line carefully.

Step4: Clean all threaded fittings and inspect for damage or wear.

Step5: Apply gas-rated thread sealant to inlet and outlet connections.

Step6: Install new pilot adjustable valve in correct flow direction and tighten securely.

Step7: Restore gas, check for leaks with soap solution, and adjust pilot flame.
