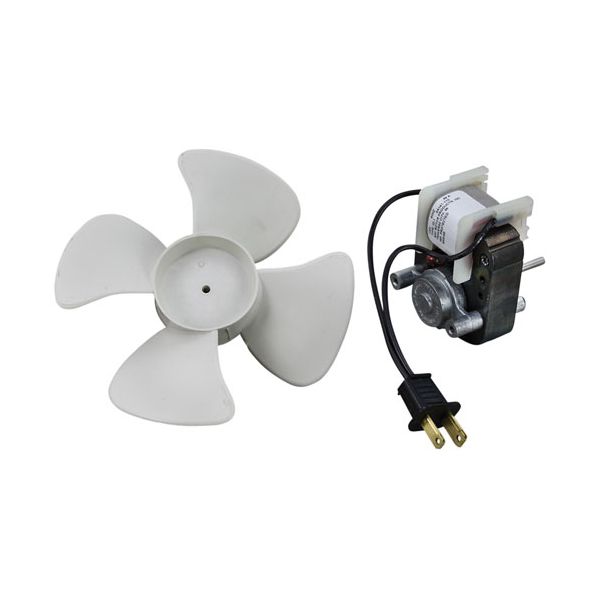

Victory VT50602101 Refrigerator Evaporator Fan Motor W/6" Blade
Special Price $161.59 Regular Price $314.08
In stock
SKU
VT50602101
Manufacturer:
The Victory VT50602101 Evaporator Fan Motor provides air movement within compatible cooling systems to circulate conditioned air across the heat-exchange area. It works by driving a 6-inch fan blade in a counterclockwise rotation, drawing air through the coil section and distributing it throughout the cabinet interior. Installed within the vaporizer compartment of compatible units, it mounts to the motor bracket and connects to the electrical wiring harness for operation. This configuration maintains consistent airflow patterns, reduces uneven temperature zones, and supports stable cooling performance during continuous coolant cycles.
Dimensions
- Length: 5.7 In
- Width: 5.7 In
- Height: 4.5 In
- Weight: 1.7 lbs
Product Notes
- Evaporator Motor W/ Fan Blade, Ccw, 120V,
- 3/16" X 1-5/16", 3/4" Stack, 6" Fan, 120V Plug W/6"
- Wire, Ccw, Bracket 8" Mt Ctrs
- Victory Uf-27, Uf-48, Ur-27, Ur-27-Sala, Ur-27-Salbk,
- Ur-27-Salls, Ur-27-Sstbk, Ur-48, Ur-48-10A, Ur-48-12A,
- Ur-48-8A, V-Series, Vpt-46, Vpt-65, Vpt-88
