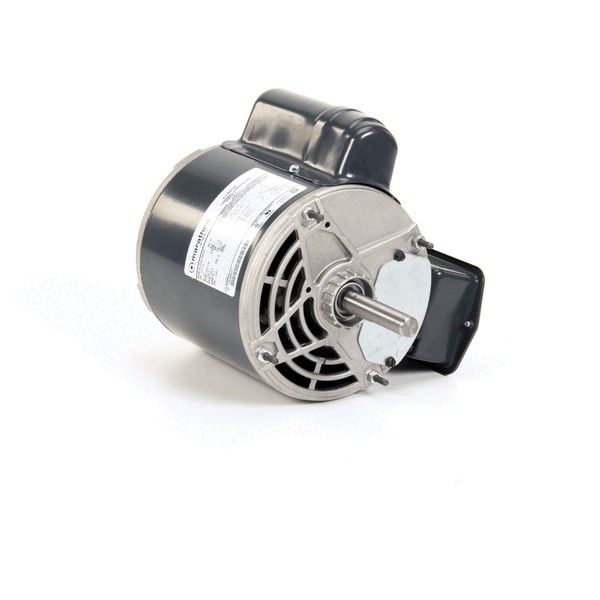

Hobart 00-419720-000G2 Motor Assembly 1/3-1/10HP 2-Speed 115V
$1,100.26
In stock
SKU
00-419720-000G2
Manufacturer:
The Hobart 00-419720-000G2 Motor Assembly 1/3-1/10HP 2-Speed 115V is used in commercial food service equipment. It is made up of a motor unit that has mounting brackets, and electrical connections that are intended to pass power to mechanical components. It is mounted in the drive housing of the appliance and is attached to gears, shafts or agitators. The motor in the system transforms electrical energy into mechanical movement. which allows the rotation of mixing or processing parts to be uniform, which supports the operation of the appliance to have consistent performance.
Dimensions
- Length: 10.5 In
- Width: 15.5 In
- Height: 10 In
- Weight: 21.4 lbs
Product Notes
- Blower Motor, 2 Speed,
- [ 115V, ] [ 1/3-1/10Hp, ] [1P ] [1725/1140 RPM ]
- [4.2/2.2A ] [Cw Rotation ] [ Shaft 5/8"]
- 2 Speed, 120V, No Brackets For Motor Use
- # 26-2769 -Brackets Sold Ea Need 2 Per Motor.
- Vulcan Hart Oven Model Sg2, Sg10, Sg22, Sg1010
- Blower Wheel # 26-1469, [ 9-7/8" Dia ] X [2-5/8"W] X
- 5/8" Bore, Concaved, Cw Rotation, Puller Hub.
