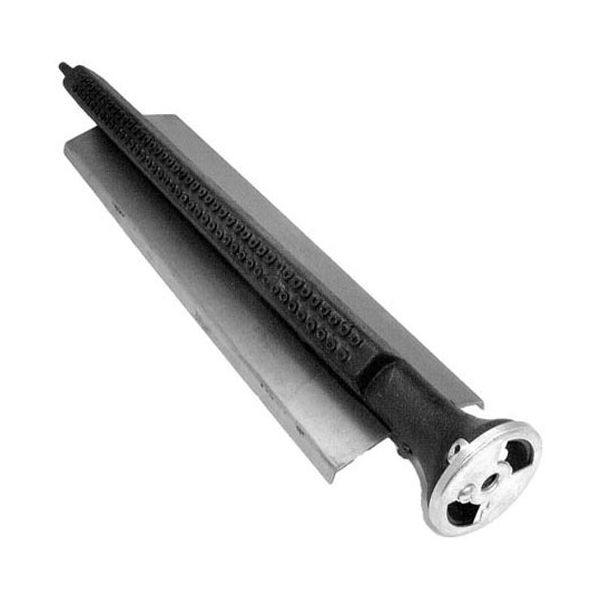

Hobart 00-700871-00004 Broiler Burner W/shield Deflector & Air Shutter 16-1/2" X 4-3/8" Shield Opening 2.408" Air Shutter W/7/16" Hole
Special Price $141.43 Regular Price $217.93
In stock
SKU
00-700871-00004
Manufacturer:
The Hobart 00-700871-00004 Broiler Burner shield deflector and air shutter is a part of the heating assembly that produces and disseminates flame in compatible systems. It measures 16-1/2 inches by 4-3/8 inches and includes a shield deflector and air shutter, and it has a 7/16 inch hole to improve control of the air and gas mix for proper combustion. Within the burner section, it supports even heat distribution over the cooking surface. This element is used in commercial broiler equipment, and it requires controlled flame operation and consistent cooking temperatures.
Dimensions
- Length: 8.134 In
- Width: 1.938 In
- Height: 1.938 In
- Weight: 10.693 lbs
Product Notes
- Cast Iron Broiler Burner W. Deflector & Air Shutter
- 22,000 Btu.
- [ 20-3/4" ] 15-1/4" Burn, 16-1/2" X 4-3/8" Shield
- Opening 2.408" Od
- Air Shutter W/ 7/16" Hole - # 26-1472,
- For Same W/ Larger 9/16" Hole Use # 26-1515 Air Shutter.
- Vulcan Vccb
- Wolf Broiler Scb
