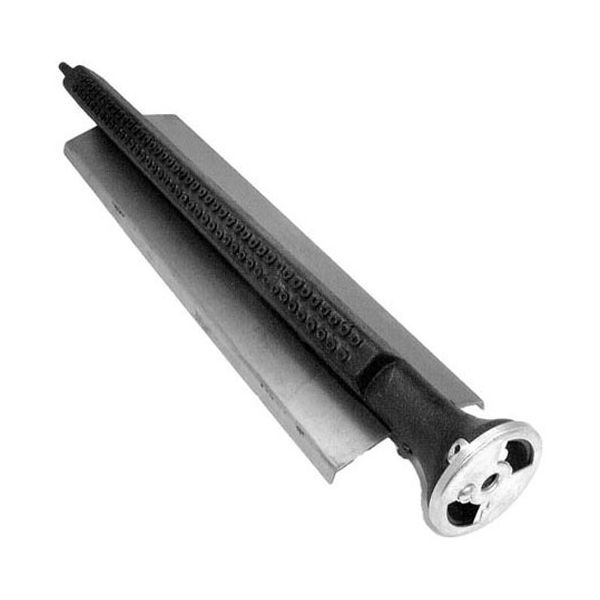

Hobart 700871-0000A Broiler Burner W/shield Deflector & Air Shutter 16-1/2" X 4-3/8" 2.408" Opening 7/16" Hole
Special Price $141.43 Regular Price $217.93
In stock
SKU
700871-0000A
Manufacturer:
The Hobart 700871-0000A Broiler Burner W/shield deflector & air shutter is a gas element that produces and directs fire into the equipment. It measures 16-1/2 inches by 4-3/8 inches and includes a shield deflector and an air shutter which has a 7/16-inch hole to regulate the air-to-gas ratio for efficient performance. Within the burner assembly is this part, 0.5, that is also used to distribute heat evenly across the kitchen surface and support stable burner operation. This element has a commercial broiler system that requires even heat output and consistent performance.
Dimensions
- Length: 8.134 In
- Width: 1.938 In
- Height: 1.938 In
- Weight: 10.693 lbs
Product Notes
- Cast Iron Broiler Burner W. Deflector & Air Shutter
- 22,000 Btu.
- [ 20-3/4" ] 15-1/4" Burn, 16-1/2" X 4-3/8" Shield
- Opening 2.408" Od
- Air Shutter W/ 7/16" Hole - # 26-1472,
- For Same W/ Larger 9/16" Hole Use # 26-1515 Air Shutter.
- Vulcan Vccb
- Wolf Broiler Scb
