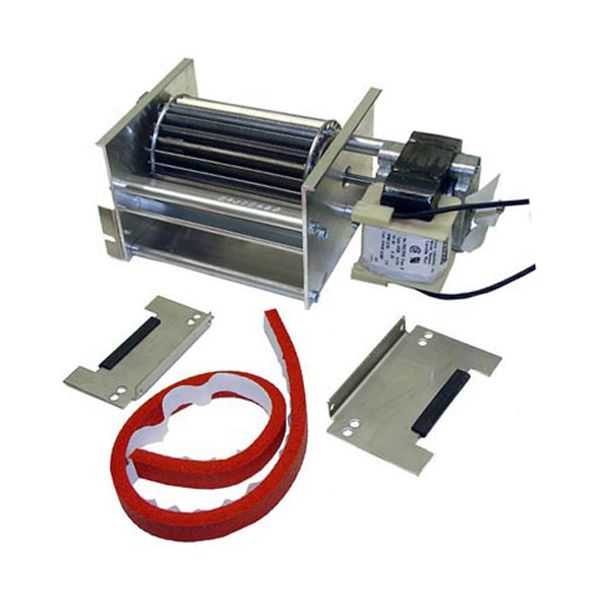

Hatco 02-12-003B Blower Motor Kit 120V
Special Price $349.16 Regular Price $700.00
In stock
SKU
02-12-003B
Manufacturer:
The Hatco 02-12-003B Blower Motor Kit 120V is a component used to generate airflow by combining an electric motor with a balanced blower wheel to move heated or ambient air through the system. It converts electrical energy into rotational motion, which controls the fan to circulate air across internal elements and through specified channels. It is mounted within the equipment housing and secured using the included system. It connects to the control circuit for coordinated operation. It maintains consistent airflow distribution and supports stable thermal regulation in the equipment.
Dimensions
- Length: 10 In
- Width: 6.3 In
- Height: 6.5 In
- Weight: 4.4 lbs
Product Notes
- Motor / Blower Assembly W/ Hardware For Units Made
- Before June 1998. Hardware Is Conversion Kit To Mount
- This Motor Assembly.
- Dimensions: Overall Width (Incl Motor)- 8-3/4".
- Blower Assy Only - 5-1/4" X 4-1/4" X 3-3/8"
- Blower Wheel - 4" X 2-3/8"
- Same As # 68-1132 But Added Hardware For Conversion
- Of Old Style Units. Used On Units B4 6/98 - Std Wattage
- Cabinets Rated 1725W.
- Units Made From June 1998 To Present Use Motor Assenbly
- # 68-1132.
- Hatco
- Warmer Series: Fs, Fshc, Fst, Wfst.
