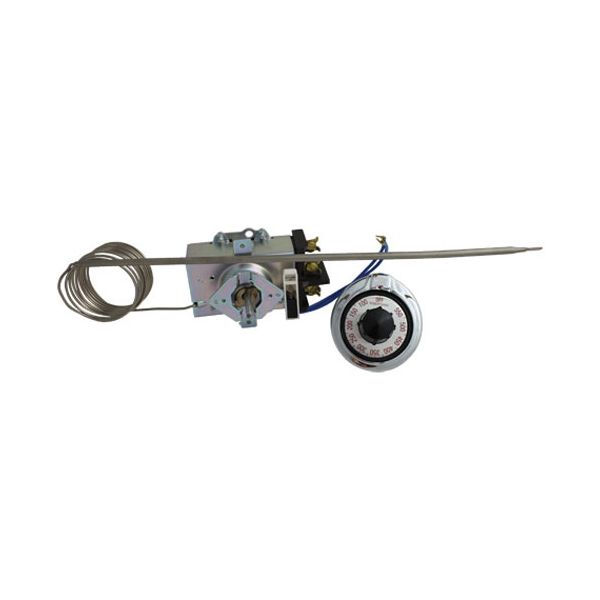

main product photo

Garland 1010300 Oven Thermostat Assembly W/ 3/16" X 13" Blub, Pilot Ligh, Dial & Bezel D1/D18

Be the first to review this product
$277.01
In stock
SKU
1010300
Add to Wish List
Electrical & Hardware, Thermostats, Shop by manufacturers
Manufacturer:
The Garland 1010300 Oven Thermostat Assembly is an essential part of the control system of the temperature. This assembly contains a 3/16”x 13” bulb, pilot light, dial, and bezel (D1/D18) to control the temperature accurately. It operates through a feature that detects the temperature inside the oven and switches the heat to get to a desired value to produce uniformity in preparing or baking food. Designed for restaurants, bakeries, and other food services, the thermostat increases energy effectiveness, improves food cookery homogeneity, and prolongs the life of the oven by avoiding overheating.

Dimensions

  • Length: 13.75 In
  • Width: 4.25 In
  • Height: 3.5 In
  • Weight: 1 lbs
https://partsfe.com/media/catalog/product/g/a/garland-1010300-oven-thermostat-assembly-w-3-16-x-13-blub-pilot-ligh-dial-bezel-d1-d18-57667-2.jpg

Product Notes

  • [ Type - D1/D18 ] [ Temp 100-550 ] [ Bulb 3/16" X 13"
  • Tin/Zinc ] [ Cap 60" ] [ Mount W/ Front Ears]
  • [ Pilot Light, Dial & Bezel Included ]
  • [ Dial A250, K-163, # 22-1005 Off-550-100 ]
  • [ Bezel A557, K-160, # 26-4088 [ Light D173, # 38-1068
  • D1'D18 T'Stat, Dpst For Ac Operation, 4 Terminal
  • Used In Applications Requiring High Current.
  • Bakers Pride Oven Countertop Electric (Where Applicable)
  • Garland Oven Series: 36E Heavy Duty Ranges. Series: E2000.
  • Vulcan Broiler Series: Vb.
  • Grill Series: Ve.
  • Oven Series: Vr~
  • Models Vo004, Vo008 Non Pizza.
BAKERS PRIDE:
U-LINE:
5000-851, 5000-85A, D1-32-060-59
Reviews
Write Your Own Review
You're reviewing:Garland 1010300 Oven Thermostat Assembly W/ 3/16" X 13" Blub, Pilot Ligh, Dial & Bezel D1/D18
Your Rating
FAQS
Customer Questions
What maintenance is required for the Garland 1010300 Thermostat Assembly?

Inspect the thermostat bulb and capillary tube for damage or leaks regularly. Clean dial and bezel to ensure accurate readings and smooth operation. Ensure secure mounting and periodic calibration for consistent oven temperature control and safe operation.

What are common issues with the Garland 1010300 Thermostat Assembly?

  • Inaccurate oven temperature readings due to calibration drift.
  • Faulty capillary tube leaks causing loss of pressure.
  • Worn dial or bezel leading to poor control response.
  • Intermittent heating or failure to maintain set temperature.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas and electrical power and allow oven to cool completely.

Step2: Remove control panel and disconnect wiring and capillary tube from old thermostat.

Step3: Install new thermostat in original mounting position and secure firmly.

Step4: Route sensing bulb into oven cavity without sharp bends or damage.

Step5: Reconnect wiring per wiring diagram carefully.

Step6: Restore power and gas then test temperature cycling and verify safe operation.
