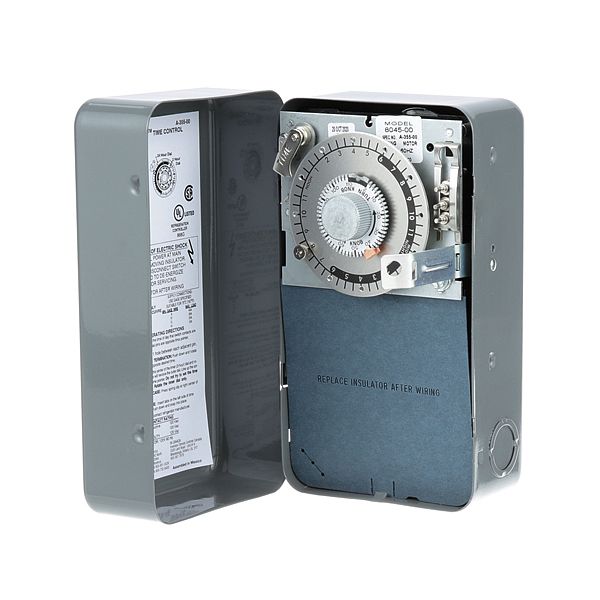

Nor-Lake 107821 Defrost Timer 120V 6141-OM
Special Price $318.28 Regular Price $538.00
In stock
SKU
107821
Manufacturer:
The Nor-Lake 107821 Defrost Timer automates the transition between refrigeration and freezing cycles by controlling the operating schedule of the cooling system. It operates as a 120V 614 1-OM timer, switching connected components at predetermined intervals to begin and end defrost operation without manual adjustment. This unit is mounted inside the equipment's electrical control section, where it interfaces with the refrigeration controls and freezing circuit. It coordinates the timing sequence required for cooling and scheduled defrost operation.
Dimensions
- Length: 9 In
- Width: 5 In
- Height: 4.5 In
- Weight: 3.25 lbs
Product Notes
- Defrost Timer, Time Initiated, Temperature Or Pressure
- Terminated.
- 120V, Switching 1 N.O., 2 N.C., 40Amp, 2Hp, Paragon, With 4
- Tripper Pins, Defrost Frequency: 1 To 6 Cycles / Day
- Adjustable Defrost Duration, 4 To 110 Min, In 2 Min
- Increments.
- True T-49, Twt-67F,
- Gdim-60, T-(12F,12Fg,35F,49F,49F-4,49Fg,72F),
- Ts-(49F,72F).
- Victory # 50197302 Model Vf-2
