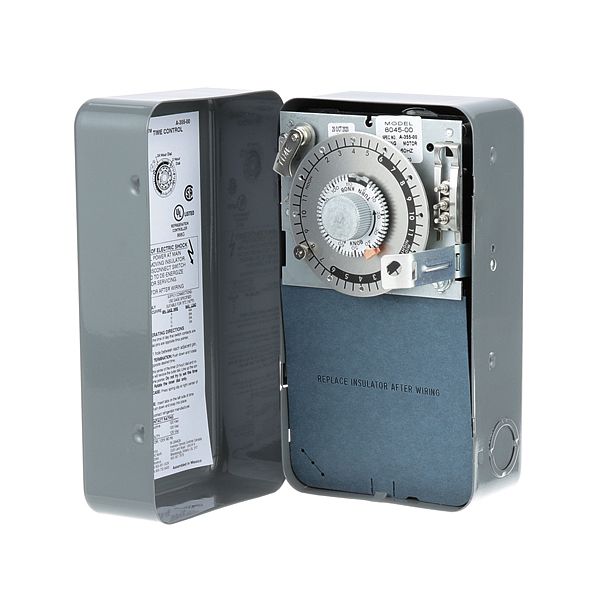

Nor-Lake 035597 Paragon Defrost Timer 120V 40A
Special Price $318.28 Regular Price $538.00
In stock
SKU
035597
Manufacturer:
The Nor-Lake 035597 Paragon Defrost Timer controls the timing of refrigeration and freezing cycles by automatically switching the system between cooling modes. It operates as a 120V, 40A timer that operates according to preset intervals to initiate and end defrost periods and supports coordinate system operation throughout the period. This unit is installed inside the electrical control compartment of compatible refrigeration equipment, where it connects to the control circuit and defrost components. It manages the sequence of cooling and freezing operations within the system.
Dimensions
- Length: 9 In
- Width: 5 In
- Height: 4.5 In
- Weight: 3.25 lbs
Product Notes
- Defrost Timer, Time Initiated, Temperature Or Pressure
- Terminated.
- 120V, Switching 1 N.O., 2 N.C., 40Amp, 2Hp, Paragon, With 4
- Tripper Pins, Defrost Frequency: 1 To 6 Cycles / Day
- Adjustable Defrost Duration, 4 To 110 Min, In 2 Min
- Increments.
- True T-49, Twt-67F,
- Gdim-60, T-(12F,12Fg,35F,49F,49F-4,49Fg,72F),
- Ts-(49F,72F).
- Victory # 50197302 Model Vf-2
