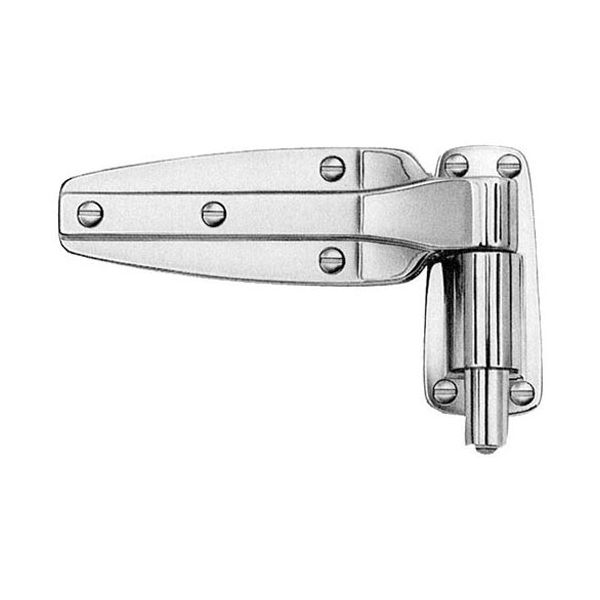

Kason 11248000024 Spring Assisted Cam Rise Hinge Reversible 1-3/8" Offset
Special Price $93.77 Regular Price $117.95
Out of stock
SKU
11248000024
Manufacturer:
The Kason 11248000024 Spring Assisted Cam Rise Hinge Reversible 1-3/8" Offset works by raising the door a little on opening and directs it to close in a regulated movement. The hinge is rotated to produce the cam rise action, which minimizes the contact of the surface, and the internal spring ensures a consistent motion in either mounting direction. The hinge is designed to be mounted at the door and frame junction with an offset of 1-3/8 inches and is designed to be installed on the walk-in cooler and freezer doors.
Dimensions
- Length: 10.25 In
- Width: 6.5 In
- Height: 0.25 In
- Weight: 3.3 lbs
Product Notes
- Reversible Spring Assisted Cam Rise Hinge, .
- 10-1/8" Long Od. X 5-21/32" Wide.
- To Reverse Remove Cap And Push Out Cam, Replace Cam
- On Other Side Of Strap And Replace Cap.
- Strap Has A Hex Hole In It Which Accepts The Stem From The
- Flange., Number "1245" Is Casted On Strap~
- Number "1248" Is
- Casted On Flange.
- 1-3/8" Offset
- Die Cast Zinc Polished Chrome Plated.
