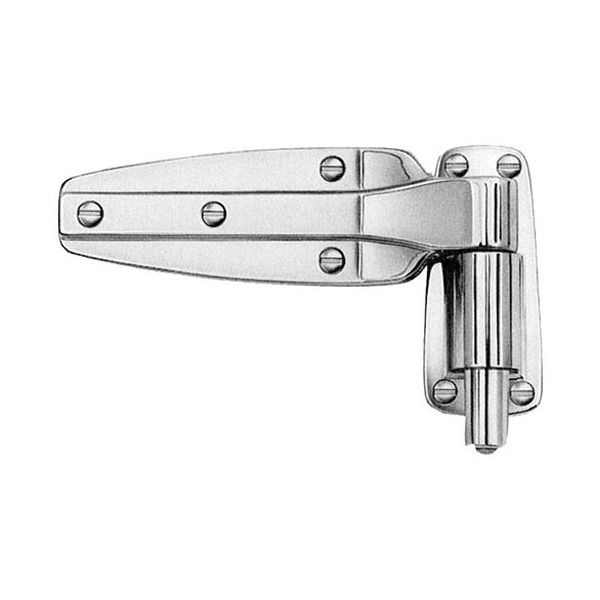

Kason 1248-000024 10-1/8" Reversible Spring Assisted Cam Rise Hinge
Special Price $97.69 Regular Price $113.95
In stock
SKU
1248-000024
The Kason 1248-000024 Door Cam Rise Hinge 1 3/8" Offset Chrome works with the door rise hinge lifting the door a little when it is opened to move easily and place it in its proper position with ease during each swing. It has an internal cam system that directs the door to move in a slow up and down motion when opening and closing. This hinge is attached on the upper or lower side of the walk-in cooler or freezer door and is aligned with the door frame to provide the correct door operation and alignment.
Manufacturer:
Dimensions
- Length: 10.25 In
- Width: 6.5 In
- Height: 0.25 In
- Weight: 3.3 lbs
Product Notes
- Reversible Spring Assisted Cam Rise Hinge, .
- 10-1/8" Long Od. X 5-21/32" Wide.
- To Reverse Remove Cap And Push Out Cam, Replace Cam
- On Other Side Of Strap And Replace Cap.
- Strap Has A Hex Hole In It Which Accepts The Stem From The
- Flange., Number "1245" Is Casted On Strap~
- Number "1248" Is
- Casted On Flange.
- 1-3/8" Offset
- Die Cast Zinc Polished Chrome Plated.
