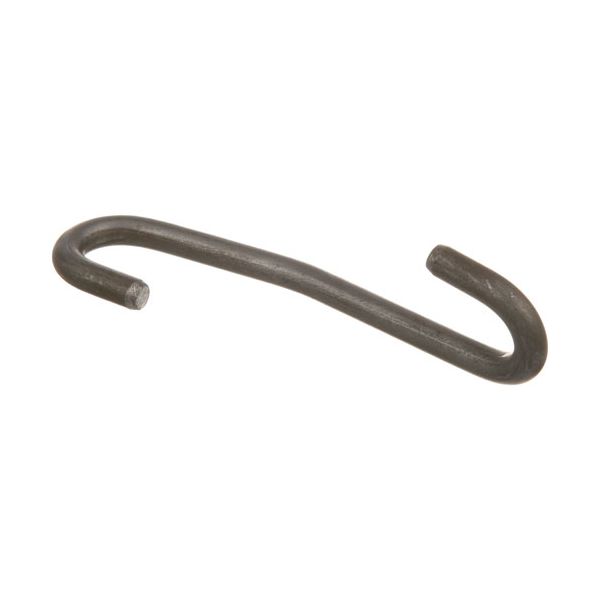

Franklin Chef 142380 Bell Crank Hook
Special Price $23.30 Regular Price $30.25
In stock
SKU
142380
Manufacturer:
The Franklin Chef 142380 Bell Crank Hook operates by attaching the internal linkage parts to the mechanical actuator, which converts rotational movement into linear force in the assembly. This hardware rotates around a central axis to either connect or disconnect certain cycles when it is in operation. The component is placed between the bell's rotating arm and the related control rod to reach mechanical alignment. This steel hook will make sure that the movement is working in the inner drive system without slipping or losing contact.
Dimensions
- Length: 3 In
- Width: 0.5 In
- Height: 3 In
- Weight: 0.1 lbs
Product Notes
- Door Hook Left, 3.02" Long, Hooks Are At 90 Degrees To
- Each Other.
- Laying Flat With Top Hook Left, Then Bottom Hook Is Up.
- Original Was Blue.
- Franklin Chef Oven Series Gh
- Vulcan Oven 12 Open Top, 148L, 148Lc, 160L, 160L77R, 160Lc,
- 24 Griddle, 24L, 260L, 260Lc, 260Lcc, 36 Griddle, 36Fl77R,
- 36L, 36L77R, 36Lc, 481L, 481Lc, 48L, 60Fl77R, 60L, 60L77R,
- 60Lc, 60Lcc, E24L, E36L, E48L, E60L, Eg160, Eg24, Eg260,
- Eg36, Eg60, Mg12
