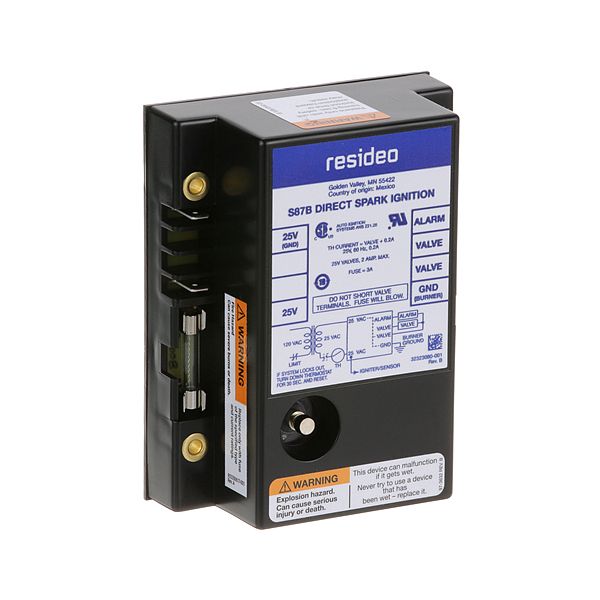

Ultrafryer 18-179 Ignition Module 25V 60Hz
Special Price $306.60 Regular Price $489.00
Out of stock
SKU
18-179
Manufacturer:
The Ultrafryer 18-179 Ignition Module 25V 60Hz operates by controlling the igniter sequence in gas systems. It generates the electrical spark required to ignite the burner, and initiates the heating process. The module operates on a timed cycle delivering a spark within a window while monitoring for flame presence. If ignition occurs, it allows the system to continue operation if not, it stops the gas flow to prevent accumulation. It works in coordination with safety controls and gas valves to ensure proper startup. By managing ignition timing and response it enables controlled burner activation and consistent heating operation within the system.
Dimensions
- Length: 5 In
- Width: 4.5 In
- Height: 2 In
- Weight: 0.695 lbs
Product Notes
- Color: Gray
- Material: Plastic
- Width: 4" | 102 mm
- Height: 5 3/16" | 132 mm
- Voltage: 25 V Ac
- Amp: 0.2
- Terminals: 1/4" Tab Terminals
- Type: 6 Seconds Lockout And Trial
- Depth: 2" | 51 mm
- Screw Centers: 3 5/16" | 84 mm
