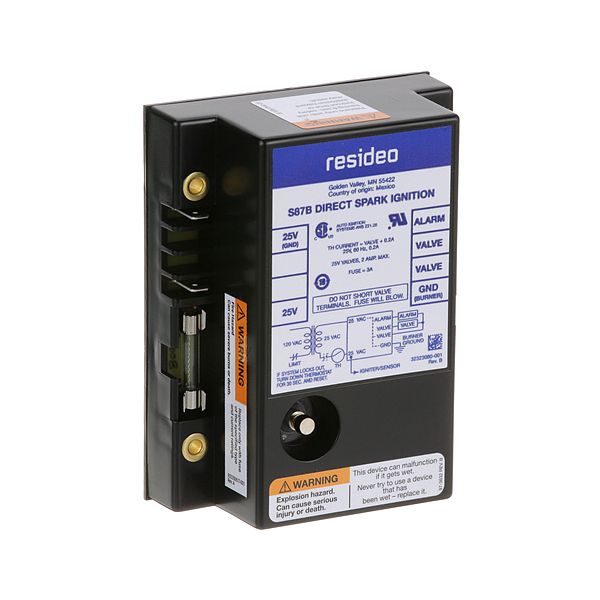

Ultrafryer S87B1008 Ignition Module 6-Second 25V
Special Price $306.60 Regular Price $489.00
Out of stock
SKU
S87B1008
Manufacturer:
The Ultrafryer S87B1008 Ignition Module 25V operates by initiating and controlling the burning process in gas systems. It produces an electrical spark to ignite the burner and begins the heating cycle. The module operates within a six-second ignition period during, which it monitors flame detection to confirm successful ignition. If the flame is established, it maintains operation if not it interrupts the gas supply to prevent unsafe conditions. It works with gas valves and safety controls to coordinate burner startup. By regulating ignition timing and flame response, it ensures controlled operation and consistent heat generation within the system.
Dimensions
- Length: 5 In
- Width: 4.5 In
- Height: 2 In
- Weight: 0.695 lbs
Product Notes
- Color: Gray
- Material: Plastic
- Width: 4" | 102 mm
- Height: 5 3/16" | 132 mm
- Voltage: 25 V Ac
- Amp: 0.2
- Terminals: 1/4" Tab Terminals
- Type: 6 Seconds Lockout And Trial
- Depth: 2" | 51 mm
- Screw Centers: 3 5/16" | 84 mm
