Allpoints 221104 Latch W/ Strike Offset 5/8 To 1-1/4
Special Price $43.80 Regular Price $51.42
Out of stock
SKU
221104
Manufacturer:

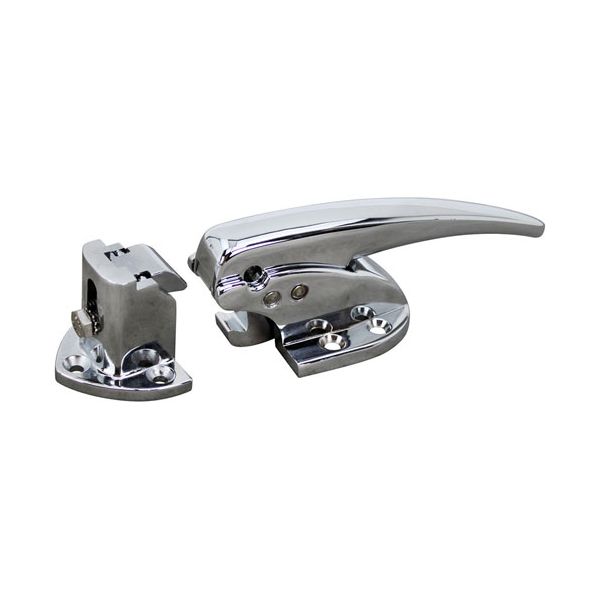

The Allpoints 221104 Mechanical Latch with Strike is a secure, polished chrome latch that is built for performance. With a curved handle and no lock, it is capable of holding offsets between 5/8” and 1-1/4”. It is 7” in length and 2-3/32” in width with outside screw centers of 13/16” x 1-1/2” and a strike with three mounting holes (centers at 29/32” x 1-1/2”). The hex-head bolt adjustment makes it easy to install the product and it also provides a perfect fit. Suitable for Series 9140 and 2818, it has stable performance in industrial use.
Dimensions
- Length: 6 In
- Width: 2 In
- Height: 2 In
- Weight: 1.3 lbs
Product Notes
- Mechanical Latch W/Strike, Polished Chrome
- Curved Handle, No Lock
- Offset 5/8" To 1-1/4"
- Length 7"
- Width 2-3/32"
- Outside Screw Centers 13/16" X 1-1/2"
- Strike W/3 Holes, Mount Hole Centers 29/32" X 1-1/2"
- With Hex-Head Bolt Adjustment.
- R30-9140-5/8
- For Series: 9140, 2818
