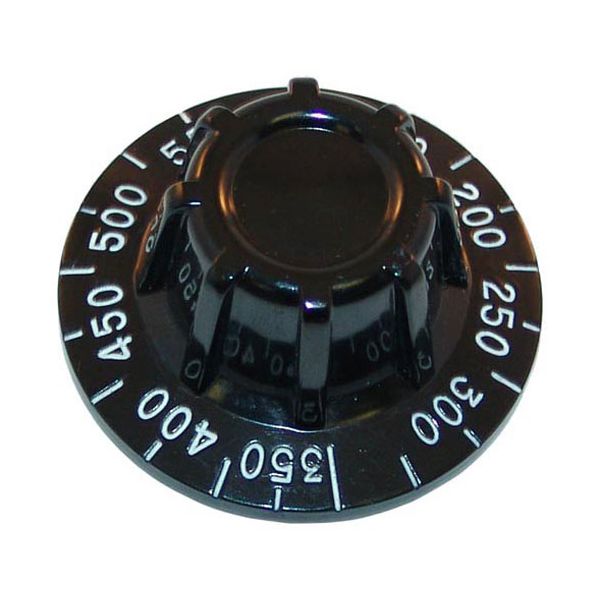

Garland 224023 Oven Thermostat Dial Kit 2-1/2" DIA 150-550°F Flat Down Mount 0.290" Position 4-Way
$2.76
In stock
SKU
224023
Manufacturer:
The Garland 224023 Oven Thermostat Dial Kit 2-1/2" DIA Flat Down Mount rotates to change the temperature setting, and the rotation turns the internal control shaft to indicate the thermostat. The pointer follows the indicated temperature values between 150°F and 550°F as the knob is rotated and, the desired level of heat is selected. It is mounted in a 4-way position on the front control panel with a diameter of 0.290", and it is flush with the surface, which offers a convenient method of adjusting and monitoring the oven temperature during operation.
Dimensions
- Length: 2.5 In
- Width: 2.5 In
- Height: 1.5 In
- Weight: 0.1 lbs
Product Notes
- Black W/ White Numbers T'Stat Knob For Fd T'Stat
- [ 2-1/2" Dia ] [ 150-550] [Mount .290] [Position 4 Way]
- Anets Fryer & Oven
- Blodgett Oven Bcg & Fa/Gzl If Unit Was Made Prior To 11/61.
- Franklin Chef Oven Series: Gdo (Except Gdo-232).
- Garland Broiler S/N 11151 & After: Sr1-40Er, Sr1-40R,
- Sr1-50R.
- Oven H284-2. Series: 40/50, 40R, G280, G293, G380.
- G2071, G2121, G2161, G2771, G48P, G48Pa, G48Pd, G48Ps,
- G48Psa, G48Psd, Gpd48, Gpd60
- Imperial Model?
- Jade Oven Jtrh>6/93
- Montague Oven 13P-1, 14P-1, 23P-2, 24P-2.
- Vulcan Ovehm60. Series: 1700, 7000, 7800, Gh, Ghm.
