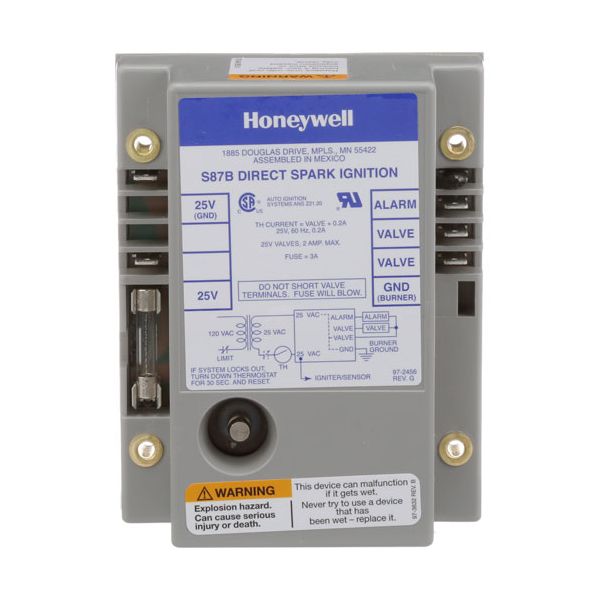

main product photo

Cleveland 3546 Steamer Direct Spark Ignition Module/ 4 Sec Lockout Single Electrode 25V

Rating:
5 5 4
4  Reviews Add Your Review
Special Price $215.73 Regular Price $481.10
In stock
SKU
3546
Add to Wish List
Electrical & Hardware, Ignition Modules, Shop by manufacturers
Manufacturer:
The Cleveland 3546 Direct Spark Ignition Module is for use with gas-powered parts such as Steamers and Vulcan Hart Fryers. The design has a 4-second lockout for safety and uses a single electrode for flame sensing and spark ignition. The 4" x 5-1/16" design of this module has a Rajah spark terminal on top and 5ea 1/4" tab terminals with a 3amp fuse for protection. It improves the reliability of the ignition, enhances the efficiency of the equipment, and provides robust flame sensing which is right for the safe and effective operation of a kitchen appliance.

Dimensions

  • Length: 4.5 In
  • Width: 6.25 In
  • Height: 3.5 In
  • Weight: 1.2 lbs
https://partsfe.com/media/catalog/product/c/l/cleveland-3546-steamer-direct-spark-ignition-module-4-sec-lockout-single-electrode-25v-63958-2.jpg

Product Notes

  • Honeywell
  • 25V Direct Spark Ignition Module, 4 Sec Lockout,
  • Uses Single Electrode For Flame Sensing And Spark Ignition
  • 4" X 5-1/16", Rajah Spark Terminal On Top.
  • 5Ea 1/4" Tab Terminals. 3 Amp Fuse (381050)
  • Cleveland Skillet T7Es.
  • Steamer Convection Steamer: 9-Pcdm-L, 9-Pcem-48-L,
  • 9-Pcgm-250-L, 9-Pcgm-300-L, 9-Pcsm-L,
  • Gas Steam Generators: 2 Probe Type Units (Large & Small).
  • Vulcan Hart Fryer Series: Ccfd.
CLEVELAND:
3546, CLE03546, CLE3546
Reviews 4
Write Your Own Review
You're reviewing:Cleveland 3546 Steamer Direct Spark Ignition Module/ 4 Sec Lockout Single Electrode 25V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Cleveland 3546 Direct Spark Ignition Module?

Inspect the module for dust, grease, or moisture buildup that may affect performance. Ensure all wiring connections are tight and corrosion-free. Keep the steamer dry and protected from heat exposure. Handle carefully to avoid damaging sensitive internal electronic components.

What are the common issues with the Cleveland 3546 Direct Spark Ignition Module?

  • Failure to generate a spark during the ignition cycle.
  • Intermittent ignition is causing delayed startup.
  • Moisture or corrosion disrupts electrical signals.
  • Internal component failure leading to ignition lockout.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off the gas and electrical supplies to the appliance to prevent hazards.

Step2: Open the control compartment to access the module.

Step3: Label and disconnect all wire connections.

Step4: Remove the mounting screws and the old ignition module.

Step5: Install the new module in the same orientation.

Step6: Reconnect wires following the wiring diagram.

Step7: Secure all connections and close the panel.

Step8: Restore gas and power and test the ignition sequence.
