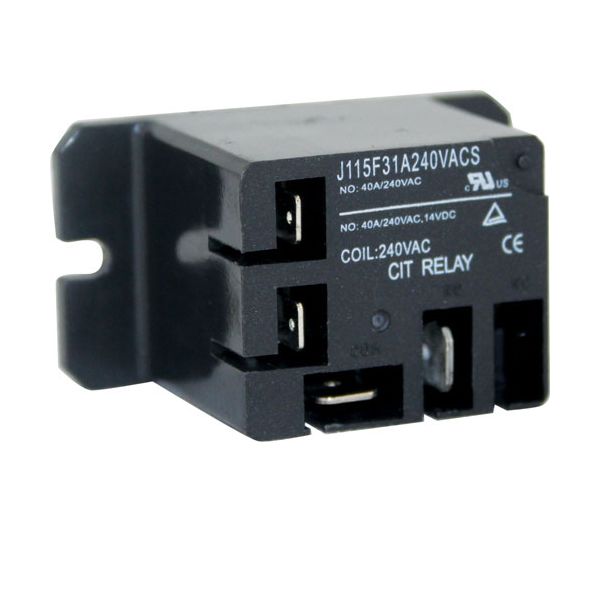

main product photo

Wells 507334 Relay

Be the first to review this product
Special Price $19.07 Regular Price $37.73
In stock
SKU
507334
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Wells 507334 Relay is an electromagnetic switch that uses an electric current to activate an internal coil to produce a magnetic field. This energy causes a group of contacts to come together to complete a higher current circuit, and heavy electrical loads can be controlled remotely. This part is fitted in the main fuse box of the engine bay or attached to a part's bracket beneath the dashboard. The component has the ability to control automotive operations like fuel pumps, cooling fans, and headlights by separating the control button and the high-power output.

Dimensions

  • Length: 2 In
  • Width: 1.5 In
  • Height: 1.5 In
  • Weight: 0.07 lbs
https://partsfe.com/media/catalog/product/w/e/wells-507334-relay-w-4-term-240vac-coil-63316-2.jpg

Product Notes

  • Relay, 240Vac Coil, (4) Term, N/O
  • Star Wells Fryer F49
APW WYOTT:
BLOOMFIELD:
Reviews
Write Your Own Review
You're reviewing:Wells 507334 Relay
Your Rating
FAQS
Customer Questions
What maintenance is required for the Wells 507334 Relay?

Inspect relay contacts for pitting or burning regularly. Ensure coil voltage stability. Tighten terminal connections to prevent overheating. Replace if switching becomes inconsistent to maintain better fryer or appliance control.

What are common issues with the Wells 507334 Relay?

  • Relay contacts sticking or failing to close properly.
  • Burned or overheated coil causing relay failure.
  • Loose terminal connections interrupting electrical operation.
  • Intermittent equipment startup or shutdown problems.
  • Contact arcing leading to inconsistent switching performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect all electrical power and check zero voltage before servicing.

Step2: Remove access panel and locate the faulty relay, noting terminal wiring positions.

Step3: Detach wires from the old relay and unmount it from its bracket or socket.

Step4: Install the new relay securely in the same position and orientation.

Step5: Reconnect all four terminals to matching wire leads as per wiring diagram.

Step6: Restore power and test control switching to ensure proper relay operation.
