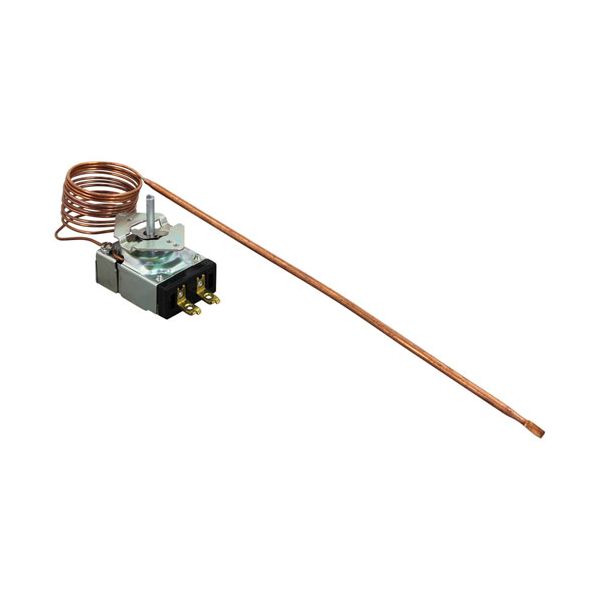

Vulcan Hart 5300-77K Griddle Thermostat 3/16" X 11-5/8" 175-550°F 60" Cap

Be the first to review this product
Special Price $210.22 Regular Price $323.90
In stock
SKU
5300-77K
Add to Wish List
Electrical & Hardware, Thermostats, Shop by manufacturers
Manufacturer:
Vulcan Hart 5300-77K Thermostat is a high performance temperature control device for commercial kitchens and Wolf appliances. Capable of managing a broad range of cooking from simmer to sear, this thermostat offers temperatures between 175°F and 550°F. It has a bulb size of 3/16" x 11-5/8" and 60" capillary to provide precise temperature control over the whole cooking surface. The D stem design is straightforward for mounting and operation. The benefits of this thermostat is that it keeps temperatures consistent for better food preparation, thereby improving cooking efficiency and food quality.

Dimensions

  • Length: 12.5 In
  • Width: 2.75 In
  • Height: 2.5 In
  • Weight: 0.5 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-5300-77k-griddle-thermostat-3-16-x-11-5-8-175-550-f-60-cap-15532-2.jpg

Product Notes

  • [ Type- Kx ] [ Temp 175-550 ] [ Bulb 3/16" X 11-5/8" ]
  • [ Cap 60" ] [ Mount 1 ] .187" D-Stem Flat Down,
  • [ Dial Use # 22-1007 Off-550-200 4-Way Blk/Silver &
  • [Bezel # 26-1227]
  • [Vul Dial # 22-1270 Off-550-200 Black Flat Down ]
  • [Vul Red Dial # 22-1441 Off-550-200 Flat
  • Up ( Need To Turn T'Stat 180 Degrees)]
  • Bakers Pride Oven X300
  • Vulcan Grill 77 (Older Electric Range), Vs, Vtm.
  • Oven 141, 241, Rgt-10.
  • Series: Et, Gh, Ghm, Sg, Vs, Vtm, Vc4Gs Vc6Gs,
  • Vc4Es, Vc6Es.
  • Wolf Convection Oven Wkgd
BAKERS PRIDE:
BKPM1024X, M1024X
HOBART:
00-347961-00001, 00-347961-1, 347961-1, HOB00-347961-1, HOB347961-1
U-LINE:
5300-770, KX112-60
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart 5300-77K Griddle Thermostat 3/16" X 11-5/8" 175-550°F 60" Cap
Your Rating
FAQS
Customer Questions
What maintenance is required for the Vulcan Hart 5300-77K Thermostat?

Inspect and calibrate the griddle thermostat regularly to ensure accurate temperature control. Clean connections and remove grease buildup to prevent signal issues. Tighten electrical terminals and check wiring safety to avoid overheating or failure.

What are common issues with the Vulcan Hart 5300-77K Thermostat?

  • Inaccurate temperature readings due to sensor drift.
  • Thermostat sticking or failing to cycle heating elements.
  • Wiring or connection failures causing intermittent operation.
  • Unresponsive controls or calibration loss after heavy use.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and ensure griddle is cool.

Step2: Remove control panel and old thermostat.

Step3: Note wiring positions before disconnecting leads.

Step4: Mount new griddle thermostat bulb/capillary in same channel securely.

Step5: Reconnect wires to matching terminals.

Step6: Reassemble panel and restore power.

Step7: Test temperature range and calibration.

Step8: Before final use, confirm safety shutdown.
