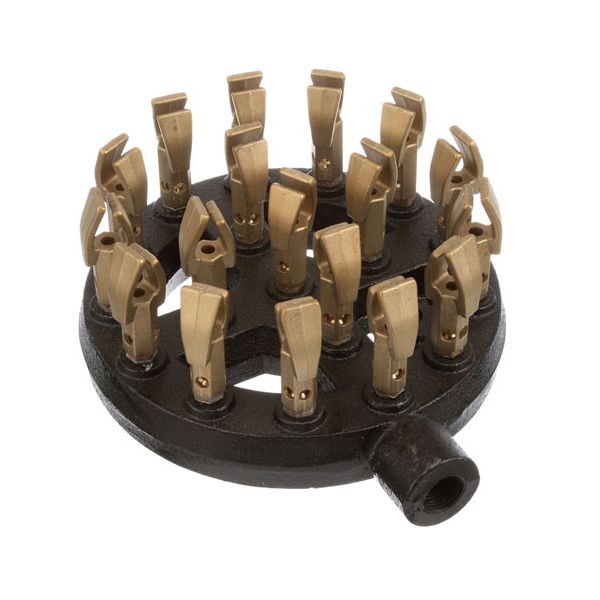

Dynamic Cooking Systems 57057-01 JET Burner 8" DIA W/18 Duck JETS
Special Price $194.84 Regular Price $471.77
In stock
SKU
57057-01
Manufacturer:
The Dynamic Cooking Systems 57057-01 JET Burner W/18 Duck JETS mixes gas and air, directing the flame through multiple jet openings to create an even heating pattern across the burner surface. As fuel flows through the jets, combustion occurs at each outlet, producing a concentrated flame suitable for commercial cooking applications. It is installed within the cooking equipment's burner assembly beneath the cooking surface, where it operates as the primary heat-generating part. Its 8-inch diameter design and 18-jet configuration support consistent flame distribution during operation in compatible units.
Dimensions
- Length: 8.5 In
- Width: 8 In
- Height: 4 In
- Weight: 8 lbs
Product Notes
- Cast Iron Duck Jet Nat Burner W/ 18 Duck Jets
- [ 7-3/4" Dia. ] Ci [ Gas Inlet - Thd 1/2" Fpt In,
- 18 Duck Nozzles, Orifice Size #56
- 125,000 Btu
- Nat Duck Jet # 26-3529
- For Lp Jet Use Imperial # 1603, Special Order Only
- Dynamic Cooking Systems
- Range Series: Icra, Isp-J.
