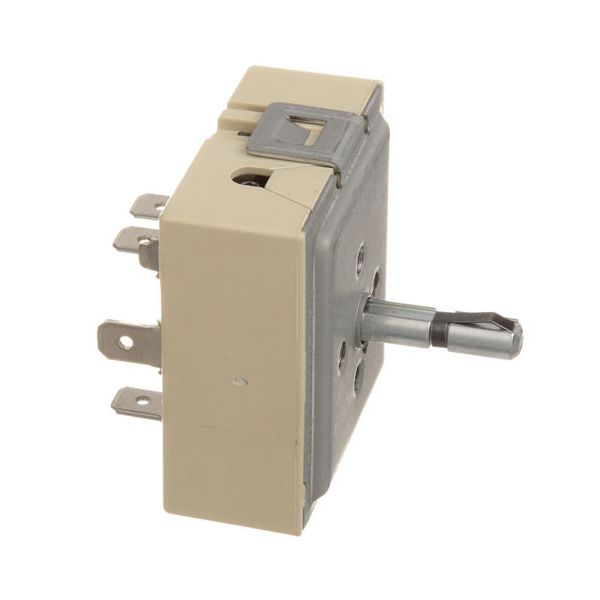

APW 69104EGO Toaster Infinite Switch 7/8" Shaft

Rating:
5 5 1
1  Review Add Your Review
Special Price $59.81 Regular Price $122.05
In stock
SKU
69104EGO
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The APW 69104EGO Infinite Switch functions as a dependable control element that enhances operational capabilities of commercial toasters. The infinite switch operates at 208V with a 13 AMP capacity through its 7/8" long shaft to provide users with exact temperature control for perfect toasting results. The switch features two horizontal screws for simple setup alongside a raised base which enhances stability. This switch works with multiple American Permanent Ware toaster models such as AT, FT, BT, T, XTRM-2 and XWAV-1417A. The pilot terminal has been moved to P2 on this part to make wiring easier and improve safety standards.

Dimensions

  • Length: 2.25 In
  • Width: 1.875 In
  • Height: 1.75 In
  • Weight: 0.16 lbs
https://partsfe.com/media/catalog/product/a/p/apw-69104ego-toaster-infinite-switch-7-8-shaft-22022-2.jpg

Product Notes

  • 208V, 13 Amp, 2 Horizontal Screws, Flat Down, Raised Base,
  • 7/8" Long Shaft. D-Stem .187" W/Clip.
  • Dial # 22-1309, Black [ 2" Dia ] [ Off-Lo-2-8-Hi]
  • Old Style "Pilot" Terminal Now Relocated And Labeled "P2"
  • American Permanent Ware Toasters,
  • Fits Models: At, Ft, Bt, T, Xtrm-2, Xtrm-2 3 Inch,
  • Xtrm-3, Xtrm-3 3 Inch, Xwav-1417A
APW WYOTT:
69104-EGO, 69104EGO, APW69104-EGO, APW69104EGO
Reviews 1
Write Your Own Review
You're reviewing:APW 69104EGO Toaster Infinite Switch 7/8" Shaft
Your Rating
FAQS
Customer Questions
What maintenance is required for the APW 69104EGO Infinite Switch?

Inspect the switch terminals and wiring connections regularly for signs of overheating, corrosion, or looseness. Verify that the control knob rotates smoothly and provides consistent heat adjustment. Keep the control area free of grease and moisture, and disconnect power before performing any inspection or service work.

What are common issues with the APW 69104EGO Infinite Switch?

  • Heat control becoming inconsistent.
  • Switch failing to regulate power.
  • Knob slipping on shaft.
  • Adjustment becoming stiff.
  • Output fluctuating during use.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power supply and ensure appliance is cool.

Step2: Remove toaster access panel and note wiring layout.

Step3: Disconnect old switch wiring carefully.

Step4: Install new switch onto shaft and secure.

Step5: Reconnect wires per diagram, ensuring tight connections.

Step6: Reassemble panel and restore power, test heat control.

Step7: check smooth operation and shut off power if abnormal.

Step8: Use manufacturer wiring diagram for confirmation.
