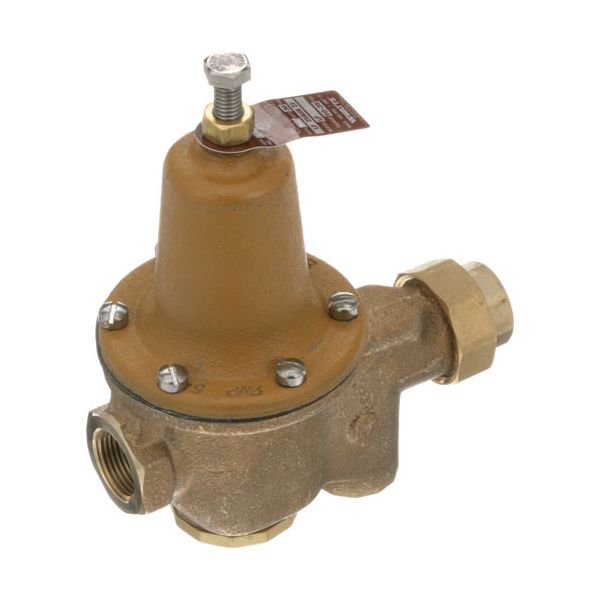

Hobart 998223 Pressure Reducing Valve 3/4" FPT
Special Price $1,949.55 Regular Price $3,164.86
In stock
SKU
998223
Manufacturer:
The Hobart 998223 Pressure Reducing Valve 3/4" FPT regulates the incoming water by balancing the flow of water through an internal spring-loaded inlet pressure with a preset setting. With a supply pressure, the valve adjusts the valve seat to reduce downstream pressure and stabilize the outlet level. The valve is fitted in line with the water supply line usually below and above any equipment that needs to be controlled by the pressure. The ports are built to support commercial service connections and are designed to use standard piping and the adjustable mechanism is to be calibrated during installation.
Dimensions
- Length: 3 In
- Width: 7 In
- Height: 5 In
- Weight: 3 lbs
Product Notes
- [ Water Pressure Reducing Valve ] [ Size 3/4" Fpt]
- 3/4" Fpt Bronze Union X 3/4" Fpt, [ 300 Psi ]
- [ 10-35 Psi Delivery ][ 33-160 Degree F ]
- [ Width 6-3/16" ] Bronze W/Stainless Steel Strainer.
- For Hot Water With Bypass
- [ Brand Watts ] [ Mfg# 3/4-U5Blp-Std ]
- Mfg# Was 3/4-U5Blp-Z3 07/24/06
- Vulcan Dishwasher Series 3D, Cd
