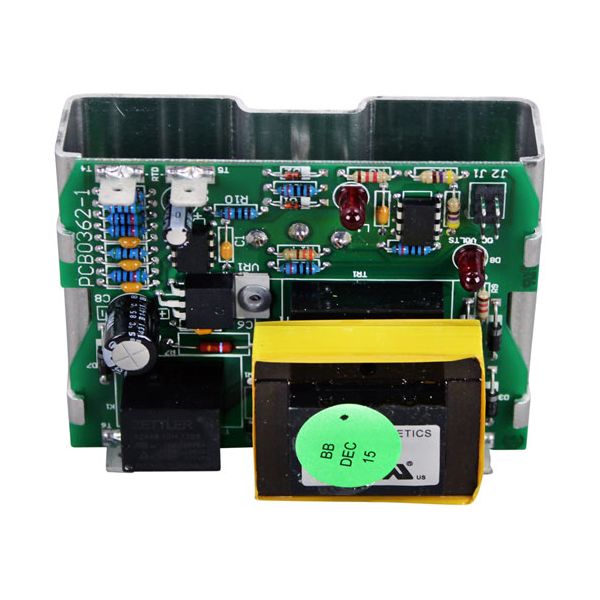

Southbend 1181998 Oven Control Board W/ Potentiometer & Bracket

Rating:

13 Reviews Add Your Review

Special Price $274.12 Regular Price $525.13

In stock

SKU

1181998

Categories: Electrical & Hardware, Control Boards & Control Panels, Shop by manufacturers

Manufacturer:

Southbend

Southbend 1181998 Oven Control Board with Potentiometer & Bracket is an essential parts which are responsible to control the temperature. Measuring 3.5 x 2.5 x 3 inches, this small yet strong unit comes with a potentiometer for easy control of temperature and a strong bracket for mounting. It helps in maintaining equal heat distribution which makes oven to be more efficient and reliable, it is easy to use, energy-saving and durable, therefore it is an crucial spare part to use in improving the performance of equipment.

Dimensions

Weight: 0.686 lbs

Details

Provides an electronic control interface for processing operator temperature adjustments within the oven's control system. The Southbend 1181998 Convection Oven Control Board With Potentiometer & Bracket combines the control board, potentiometer, and mounting bracket into one assembly. The potentiometer provides manual input, while the control board processes the electrical signal associated with the selected setting.

Electronic Control Processing:
Receives the electrical input generated through the potentiometer and processes the selected setting through the oven's control circuitry. The control board interprets the input and communicates the corresponding control signal to connected electrical components. This electronic processing allows the control system to respond to changes made through the operator interface.

Potentiometer Input:
Provides variable electrical input corresponding to the operator's adjustment of the temperature control. Rotation of the potentiometer changes its electrical output, which the control board then interprets. Consistent potentiometer response helps provide predictable input to the oven's control circuitry.

Replacement Guidelines:
Replace the Convection Oven Control Board if it is damaged, burned, cracked, unresponsive, or no longer provides proper control functions. The part number 1181998 and the included potentiometer and bracket configuration should be verified before replacement to ensure the correct control board assembly is selected. Replace the control board if deterioration affects electrical connections, control response, potentiometer operation, or normal oven operation.

Common Failure Symptoms:

Oven temperature control does not respond normally to knob adjustments.
Control response becomes intermittent or unresponsive.
Potentiometer input does not correspond consistently with the selected setting.
Visible damage or burning appears on the control board.
Electrical control functions become inconsistent during oven operation.

Equipment Compatibility:
The Southbend 1181998 Convection Control Board With Potentiometer & Bracket is intended for equipment requiring this specific control assembly configuration. Verify the equipment model, part number, and electrical connections before purchase.

Technical Specifications:
Brand: Southbend
Part Number: 1181998
Component Name: Convection Oven Control Board

Replaces Parts

MIDDLEBY MARSHALL:

1181998

SOUTHBEND:

1175024, 1175025, 1181998, SOU1175024, SOU1181998

STAR MFG:

1181998

Reviews 13

Write Your Own Review

FAQS

Customer Questions

Can I recycle or dispose of the old oven control board safely?

Electronic waste recycling programs or facilities can handle the proper disposal or recycling of old control boards. Check local regulations and recycling options to ensure environmentally responsible disposal.

What should I do if I encounter issues after replacing the control board?

If you experience issues after replacing the control board, double-check the installation and connections. If problems persist, refer to the oven's manual, consult a technician experienced with Southbend ovens, or contact Southbend's customer support for assistance.

Are there any maintenance requirements for the oven control board?

While the control board itself might not require routine maintenance, following proper oven care guidelines, including cleaning and regular inspections, can contribute to optimal performance.

What maintenance is required for the Southbend 1181998 Control Board?

Inspect the control board regularly for loose connections, corrosion, or heat damage to ensure stable oven operation. Check the potentiometer for smooth adjustment and secure mounting on the bracket. Keep the area free from grease buildup and dust to prevent electrical interference. Always disconnect power before servicing to reduce the risk of electrical shock.

What are the common issues with the Southbend 1181998 Control Board?

Inaccurate temperature readings or control.
Failure to power on or respond.
Loose or corroded wiring connections.
Potentiometer issues are causing erratic settings.

What maintenance is required for the Southbend 1181998 Control Board W/ Potentiometer & Bracket?

Periodically inspect the control board for loose connections or burn marks. Verify the potentiometer adjusts settings smoothly and the bracket is secure. Test the oven functions to confirm signals are sent correctly to heating elements. Avoid exposing the board to moisture.
