Genuine OEM Part
main product photo

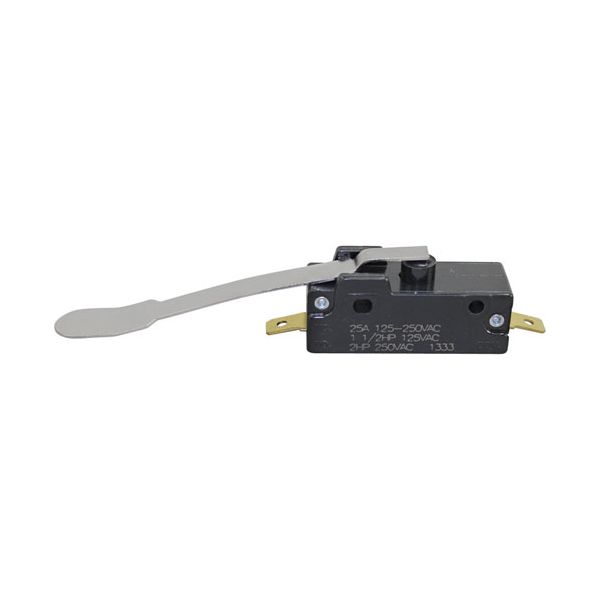

Jade Range 3000011750 Oven Door Switch

Be the first to review this product
Special Price $25.73 Regular Price $29.95
In stock
SKU
3000011750
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Jade Range 3000011750 Door Switch is an electrical component is manufactured for application in commercial oven. It operates at 25A/125-250VAC with two tab terminals for connection. This switch has the function of knowing whether the oven’s door is open or closed and will not allow the oven to function when the door is open. The switch also assists in safety by ensuring that the circuit does not lose heat and use up energy unnecessarily. It is strong, perfect for commercial use, and enables easy movement signifying high efficiency of the ovens.

Dimensions

  • Length: 5 In
  • Width: 1.5 In
  • Height: 1.5 In
  • Weight: 0.06 lbs
https://partsfe.com/media/catalog/product/j/a/jade-range-3000011750-oven-door-switch-30835-2.jpg

Product Notes

  • 25A/125-250Vac, (2) Tab Terminals
JADE RANGE:
Reviews
Write Your Own Review
You're reviewing:Jade Range 3000011750 Oven Door Switch
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jade Range 3000011750 Door Switch?

Inspect the oven door switch regularly for wear, misalignment, or loose wiring. Clean surrounding area to prevent debris buildup affecting activation. Proper maintenance ensures accurate door detection, improves safety, and prevents heating inconsistencies during operation.

What are common issues with the Jade Range 3000011750 Door Switch?

  • Door switch misalignment causing oven not to detect closure properly.
  • Electrical contact wear leading to intermittent heating.
  • Loose wiring connections interrupting signal flow.
  • Mechanical sticking or failure from grease and debris buildup.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power supply to oven to avoid electric shock and verify breaker is off.

Step2: Remove oven door panel or access cover using proper tool and keep screws safe.

Step3: Locate faulty door switch and disconnect wiring harness carefully noting connections.

Step4: Install new switch, aligning mounting bracket and securing screws firmly.

Step5: Reconnect wiring exactly as original configuration ensuring tight fit.

Step6: Reassemble panel and restore power, then test door operation thoroughly.
