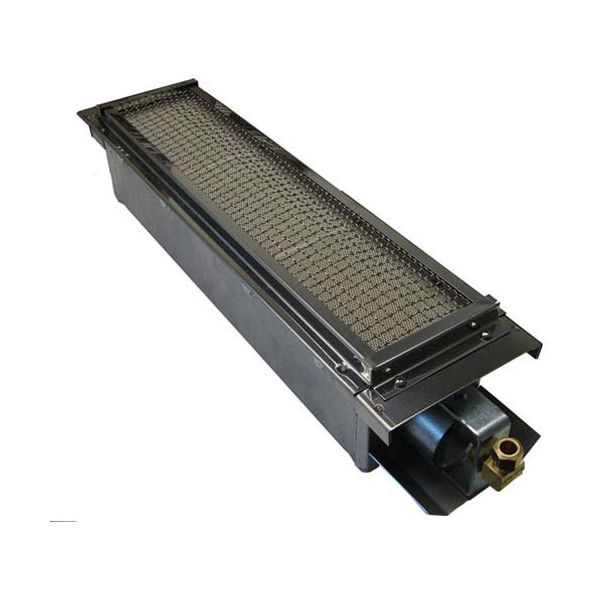

Garland 222011-1 Grill Infrared Burner W/ Wire Mesh Screen 4" X 16-5/16"
Special Price $394.94 Regular Price $594.44
In stock
SKU
222011-1
The Garland 222011-1 Infrared Burner Assembly 4" x 16-5/16" produces consistent, high-intensity heat to cook food evenly and minimize flare-ups. It is the main component of the cooking system of the appliance. It is installed directly into the grill or broiler housing and it operates in conjunction with gas valves and burners to ensure that there is the right level of temperature control and that the heat is distributed efficiently. This burner assembly is typically placed in restaurants and professional kitchens and provides an accurate performance and helps to make the cooking appliance work.
Manufacturer:
Dimensions
- Length: 20 In
- Width: 5 In
- Height: 3.5 In
- Weight: 8.1 lbs
Product Notes
- Infrared Burner, W/ Wire Mesh Screen.
- 5" X 18-7/8" Od , 4" X 16-5/16" Burner,
- Overall Length 19-3/4" Including Venturi, 4" X 16-1/4" Box
- Only, Orifice Holder 3/8Cct X #48 Orifice Hole- Threaded
- Into Bracket On Burner, 17,000 Btu (For Nat Gas Only) For
- Lp, Model Of Unit Is Needed In Order To Determine Orifice
- Size.
- Garland Broiler Ircm-24
- Imperial Broiler Icma/Icfb(Old Style)
- Montague Cheesemelter Series Mcm 24-72
- Us Range Roiler/Cheesemelter Irc96A,
- Icma(24,48,72,96,120,144).
