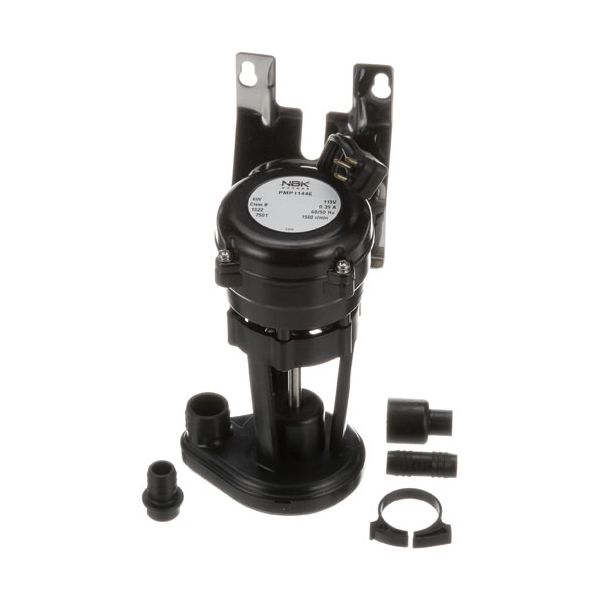

Manitowoc MAN7623063 Water Pump Assembly 5/8"OD 115V 60Hz
Special Price $377.86 Regular Price $723.87
In stock
SKU
MAN7623063
Manufacturer:
The Manitowoc MAN7623063 Water Pump Assembly 5/8"OD is an electrical power-to-mechanical motion converter that supports moving the ice machine by pushing the pump to circulate the water over the evaporator. It is 115V and 60Hz, and it is hardwired to the water system. The unit is an assembly that is placed within the ice system, usually close to the water reservoir, and it must be aligned with the pump mechanism. Its location enables effective water circulation and connection with the current plumbing system.
Dimensions
- Length: 10.75 In
- Width: 5.25 In
- Height: 6 In
- Weight: 4.55 lbs
Product Notes
- Water Pump/Motor Assembly, 115V, 50/60Hz, 6W,.36Amp,
- 1" & 5/8" Od. Connections For Hose.
- Manitowoc, All 115V Models
- Ac0340A, Ac0350W, Ad0152A, Ad0153W, Ad0202A, Ad0203W,
- Ad0402A, Ad0403W, Ad0602A, Ad0603W, Ar0150A, Ar0151W,
- Ar0200A, Ar0201W, Ar0400A, Ar0401W, Ar0600A, Ar0601W,
- Ay0204A, Ay0205W, Ay0404A, Ay0405W, Ay0604A, Ay0605W,
- Bd0152A, Bd0153W, Bd0202A, Bd0203W, Bd0252A, Bd0253W,
- Bd0322A, Bd0323W, Bd0422A, Bd0423W, Bd0452A, Bd0453W,
- Bd0492N, Br0150A, Br0151W, Br0200A, Br0201W, Br0250A,
- Br0251W, Br0320A, Br0321W, Br0420A, Br0421W, Br0450A,
- Br0451W, Br0490N, Cd0202A, Cd0203W, Cd0402A, Cr0200A,
- Cr0201W, Cr0400A, Cr0401W, Cvd1375, Cvd1475, Cvd1476,
- Cvd1875, Cvd2075, Cy0204A, Cy0205W, Cy0403W, Cy0404A,
- Cy0405W, Gd-0152A, Gd-0153W, Gd-0202A, Gd-0203W, Gd-0402A,
