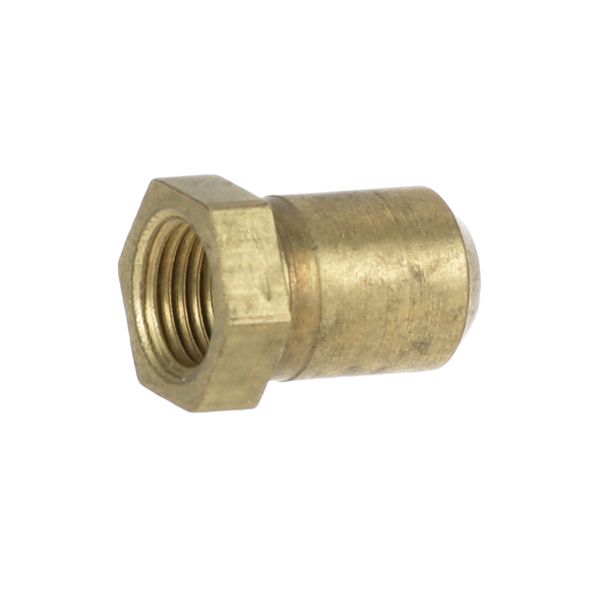

Garland M8-63 Range Orifice #63

Be the first to review this product
$5.10
In stock
SKU
M8-63
Add to Wish List
Griddle & Grill Parts, Gas Grill Orifices,
Manufacturer:
The Garland M8-63 Range Orifice #63 controls the flow of gas to commercial burners and directs the fuel through a specially designed opening beneath the brass hood to allow it to burn. It operates by generating a steady flame through the burner ports to maintain a steady amount of heat. It is the essential part of the gas delivery system of the appliance. The orifice assists in the maintenance of the correct functioning of the burner and the general functioning of the appliance.

Dimensions

  • Length: 0.75 In
  • Width: 0.25 In
  • Height: 0.75 In
  • Weight: 0.01 lbs
https://partsfe.com/media/catalog/product/g/a/garland-m8-63-orifice-63-24579.jpg

Product Notes

  • Hood Orifice 3/8"-27 W/ #63 Hole, 1/2" Long
  • Star Fryer 215B, 216, 615F
GARLAND:
GLASS MAID:
SOUTHBEND:
STAR MFG:
Reviews
Write Your Own Review
You're reviewing:Garland M8-63 Range Orifice #63
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Garland M8-63 Orifice?

Clean the orifice regularly to prevent grease and carbon buildup, ensuring consistent gas flow. Inspect for blockages and wear during routine service. Proper maintenance improves combustion efficiency and safety. Always shut off gas supply before servicing.

What are common issues with the Garland M8-63 Orifice?

  • Carbon clogging leading to weak or uneven flame.
  • Gas flow restriction causing ignition delays.
  • Misalignment affecting burner performance.
  • Wear or damage enlarging orifice opening over time.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and electrical power to the appliance for safety.

Step2: Remove burner assembly access panel to reach the orifice holder.

Step3: Carefully unscrew existing orifice using correct tool without damaging threads.

Step4: Clean threads thoroughly and inspect fitting for wear or debris.

Step5: Install new orifice hand-tight, then gently snug to secure position.

Step6: Reassemble burner components and ensure all connections are properly aligned.

Step7: Restore gas supply and perform leak test using soapy water solution.
