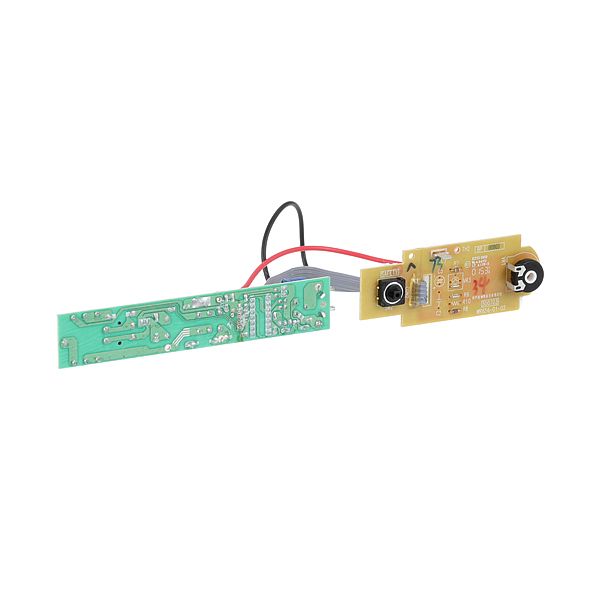

Waring/Qualheim 030443 Printed Circuit Board Assembly

Special Price $85.89 Regular Price $103.99
In stock
SKU
030443
The Waring/Qualheim 030443 Printed Circuit Board Assembly operates electrical signals by routing current through its system of connections and routes. It receives inputs and transmits outputs to other sections of the appliance to regulate several operations. It is fitted in the appliance and is mounted on special brackets or slots and connected to the wiring harness. This position provides the ability to connect with sensors, switches and motors and is the main point of electronic control and coordination of the work of the unit.

Dimensions

  • Length: 6 In
  • Width: 4 In
  • Height: 1 In
  • Weight: 0.16 lbs
https://partsfe.com/media/catalog/product/w/a/waring-qualheim-030443-printed-circuit-board-assembly-70432-2.jpg
Manufacturer Name: Waring/Qualheim
Product Number: 030443
OEM Part Number: 030443
Product Description: Pc Board Assembly
Similar Models:30443 - Waring/Qualheim
Dimensions:
Length:7in/17.78cm
Width:5in/12.7cm
Height:1.5in/3.81cm
Weight:0.16lbs/72.57g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or contact@partsfe.com

Write Your Own Review
You're reviewing:Waring/Qualheim 030443 Printed Circuit Board Assembly
Your Rating
Customer Questions
What maintenance is required for the Waring/Qualheim 030443 Printed Circuit Board Assembly?

Keep the circuit board clean and free from dust, moisture, and grease buildup to prevent electrical faults. Inspect connectors regularly for corrosion or looseness. Ensure stable voltage supply to avoid overload damage.

What are common issues with the Waring/Qualheim 030443 Printed Circuit Board Assembly?

  • Electrical failure due to power surges or shorts.
  • Intermittent operation from loose connectors.
  • Component burnout caused by overheating.
  • Corrosion or moisture damage affecting circuit accuracy.

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect the equipment from electrical power before servicing.

Step2: Remove the base housing or control cover to access the circuit board assembly area.

Step3: Label and disconnect all wire harness connections from the existing circuit board.

Step4: Remove mounting screws and carefully lift out the old printed circuit board assembly.

Step5: Install the new board in the same orientation and secure it with screws.

Step6: Reconnect all wiring to the correct terminals, reassemble the housing, and test for proper power and control operation.
