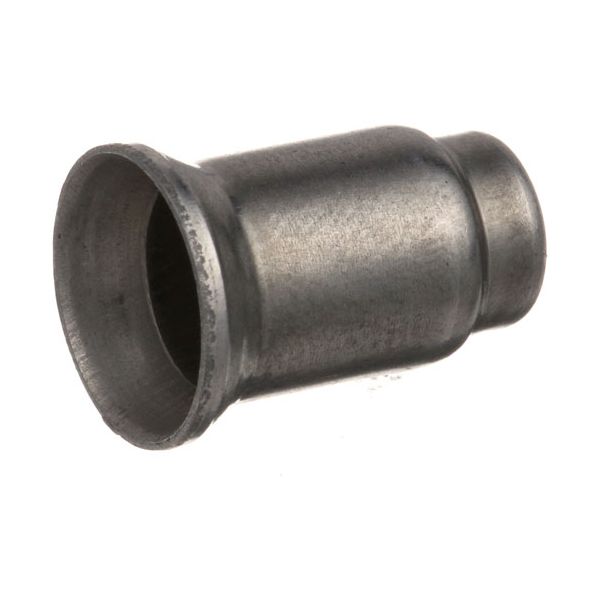

American Range A11118 Fryer Natural Gas Pilot Orifice 0.018"

Be the first to review this product
$9.62
In stock
SKU
A11118
Add to Wish List
Griddle & Grill Parts, Gas Grill Orifices,
Manufacturer:
The American Range A11118 Fryer Natural Gas Pilot Orifice 0.018" works with the concept of controlling the exact amount of fuel flow into the pilot burner assembly to ensure the same standing flame. This part is used to measure pressure of the liquid by a precisely bored 0.018-inch hole to keep the pilot light burning until the main heater ignites. The opening will be situated in the tubing line, and it will be clamped between the supply gas connection and the initial combustion head.

Dimensions

  • Length: 0.5 In
  • Width: 0.25 In
  • Height: 0.5 In
  • Weight: 0.01 lbs
https://partsfe.com/media/catalog/product/a/m/american-range-a11118-pilot-orifice-nat-018-x-1-4-58889-2.jpg

Product Notes

  • Nat Pilot Orifice .018" X 1/4"
  • .372" Dia X .530" Long
  • ***Sometimes Used In Lp Applications***
  • Cecilware Fryer Lp Orifice For Model Gf10
  • Frymaster Fryer
  • Garland Fryer
  • Henny Penny Fryer 600, Og- 301,302,303
  • Imperial Oven Icv, Icvd (Lp)
  • Montague 3418, 3618, Sb34, Sb36
  • Vulcan Fryer Gpc, Gr
  • Oven 60L, 60Lc
  • Wolf Fryer Wtf-35, Wtf-42
AMERICAN RANGE:
BAKERS PRIDE:
BLODGETT:
COMSTOCK CASTLE:
DYNAMIC COOKING SYSTEMS:
HENNY PENNY:
IMPERIAL:
1017, 1058, 2031-2, IMP1058
SOUTHBEND:
U-LINE:
10-021
Reviews
Write Your Own Review
You're reviewing:American Range A11118 Fryer Natural Gas Pilot Orifice 0.018"
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the American Range A11118 Pilot Orifice?

Regularly inspect the pilot orifice for blockages caused by grease or debris and clean it using compressed air or a fine wire. Ensure proper gas flow and alignment during reinstallation. Regular maintenance can maintain consistent ignition and prevents unsafe gas buildup.

What are common issues with the American Range A11118 Pilot Orifice?

  • Clogging due to grease, dirt, or carbon buildup restricting gas flow.
  • Weak or inconsistent pilot flame affecting ignition.
  • Gas leakage from improper fitting or worn connections.
  • Misalignment causing uneven or unstable flame performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and allow appliance to cool completely before service.

Step2: Remove burner assembly access panel carefully.

Step3: Unscrew existing pilot orifice carefully gently.

Step4: Install new orifice, ensure correct threading alignment.

Step5: Tighten securely without over-torquing or damaging threads.

Step6: Reassemble burner components and access panel firmly.

Step7: Restore gas supply, test pilot flame, and check for leaks using soapy water solution.
