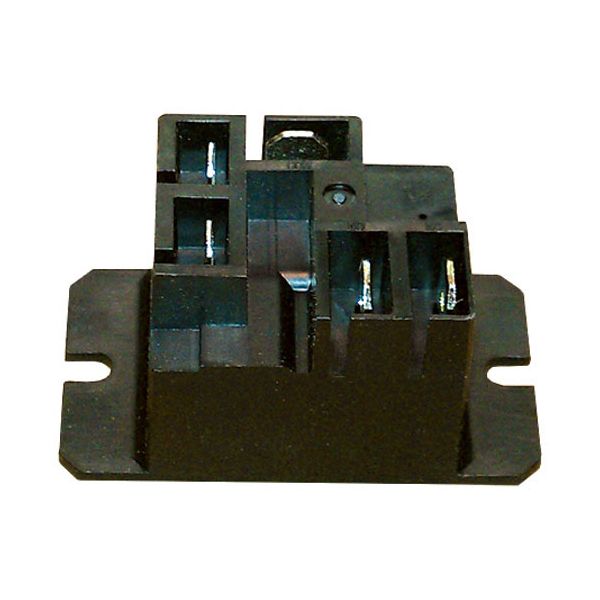

Frymaster 8071683 Fryer Relay 20A 12 VDC
Special Price $27.13 Regular Price $48.45
In stock
SKU
8071683
Manufacturer:
The Frymaster 8071683 Fryer Relay 20A 12 VDC is an electromechanical relay which controls the high current power flow to the heating coils or gas valves. Is used to make the connection between the low-voltage thermostat circuit and the heavy electrical load of the appliance. It is normally placed in the control box of the fryer where it aids in the quick cycling of the oil to ensure that the temperature of the oil is held at a constant to assure a uniform frying process.
Dimensions
- Length: 8 In
- Width: 5.5 In
- Height: 1.5 In
- Weight: 0.15 lbs
Product Notes
- Relay, 12Vdc
- Frymaster 18Ue, 2836 W/O Float Switch, 2836 With Float
- Switch, Bih152, Bih252, Bih352, Bih452, Bih52, Bih552,
- Biph252/255, Biph352/355, Biph452/455, Biph52/55, Biph552,
- Bire14, Eh1721, Fbra18, Fe155, Fp128, Fp128-136S,
- Fp128-236S, Fp136, Fp228, Fp236, Fp28, Fp36,
- Fph17, Fph17Sc,
- Fpph217, H14, H14 Naval, H14 Sub, H14Sc, H17, H17 Naval,
- H17Sc, H22, H22 Naval, H22Sc, Jbih252, Kfc18E,
- Mh152, Mh252,
- Mh352, Mh452, Mh52, Mh552, Mph152/155, Mph252/255,
- Mph352/355, Mph452/455, Mph52/55, Mre14, Navy Submarine,
- Pro Series, Re14, Re17, Re22, Sr114E
