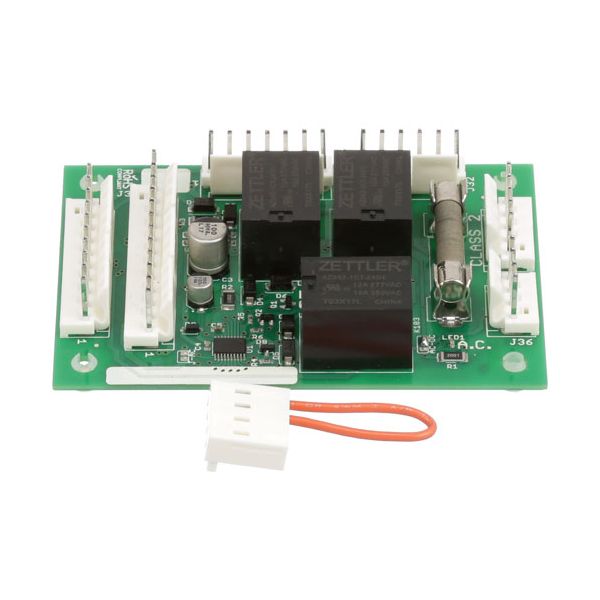

Pitco 60144001-CL Fryer Relay Board Class-2 24V

Rating:

4 Reviews Add Your Review

Special Price $93.11 Regular Price $179.34

In stock

SKU

60144001-CL

Categories: Electrical & Hardware, Switches & Relays, Shop by manufacturers

Manufacturer:

Pitco

The Pitco 60144001-CL Class-2 Relay Board 24V is an ele‌ctronic control component to manage low-voltage switching operation within commer‌cial fr‍y⁠er s‌ystems. It operates by receiving 24-volt control signals from the fryer’s main controller and di‍recting electrical communication to connected components such as relays igni‍t‍ion⁠ circuits or safety devices through integrated circuitry mounted on the board, It coordinates signal routing and switching op‌erations that support timed equipment operations and electrical sequencing during cooking cycl‍es. It is inside the fryer’s control compartment, moun⁠t⁠ed near the main electrical panel where it inte‍rfaces with wiring harnesses and low-voltage c‍ontrol com‌ponent‌s throughout the unit.

Dimensions

Length: 5 In
Width: 3 In
Height: 1 In
Weight: 0.15 lbs

Product Notes

Relay Board 24V Class 2
Fits Pitco Models~
3Ssh75Rsstc-S-Fd, 3Ssh75Rsstc-S/Fd, 4Ssh75Rsstc-S-Fd,
4Ssh75Rsstc-S/Fd

Details

This relay board kit is used in commercial fryers to help control electrical signals inside the equipment. It works with 24V power and helps switch signals between important fryer parts like burners, ignition, and safety systems. It also works with the wire harness and connector assembly to make sure all signals are sent correctly, and the fryer runs smoothly during heating cycles. This part is commonly used in busy commercial kitchens where fryers run all day. If the relay board starts to fail, the fryer may heat unevenly, respond slowly, or stop working properly. Replacing it helps restore correct electrical control and keeps the fryer working reliably every day.

Equipment Compatibility:
Used in commercial fryer control and electrical systems, Pitco relay board applications include fryer control units and burner ignition systems used in professional kitchens. This Relay Board Kit 60144001-CL is compatible with equipment from brands like Pitco and Magikitch’n, where stable 24V control signals and proper burner coordination are needed for safe fryer operation.

Brand Compatibility:
This relay board replaces similar parts used in commercial fryers from brands like Pitco, Magikitch’n, and more. It is made to match standard setups for proper fit and operation. Full cross-reference details can be checked separately for exact matching.

Product Specifications:
Product Type: Fryer Class-2 Relay Board Kit
Manufacturer: Pitco
SKU: 60144001-CL
Voltage: 24V
Includes: Relay board, wire harness, and connector assembly

Key Features:

Provides stable 24V switching for fryer control parts, helping burners and ignition systems work correctly.
The built-in wire harness and connectors help keep electrical connections strong and reliable.
Reduces the chance of signal problems during continuous commercial use.
Helps maintain smooth and steady fryer operation.
Supports safe and consistent fryer performance in busy kitchens.
Easy replacement part for fixing fryer control issues.
Restores proper function when the original relay board stops working correctly.
Operator feedback:
“After installing the relay board, the fryer responded more consistently and ignition became much more reliable.”

Replaces Parts

MAGIKITCH'N:

60144001-C, 60144001-CL

PITCO:

60144001-C, 60144001-CL, 60144001C

Reviews 4

Write Your Own Review

FAQS

Customer Questions

What maintenance is required for the Pitco 60144001-CL Relay Board?

Regularly inspect the relay board for signs of corrosion, burnt contacts, or loose connections. Clean dust and grease carefully using a soft brush or compressed air. Ensure power is off before handling to prevent shock. Routine checks prevent failures and prolong fryer performance.

What are the common issues with the Pitco 60144001-CL Relay Board?

Relays failing to engage or disengage properly
Overheating of contacts causing intermittent operation
Burnt or pitted relay contacts
Faulty voltage input leading to inconsistent fryer cycles.
