Genuine OEM Part

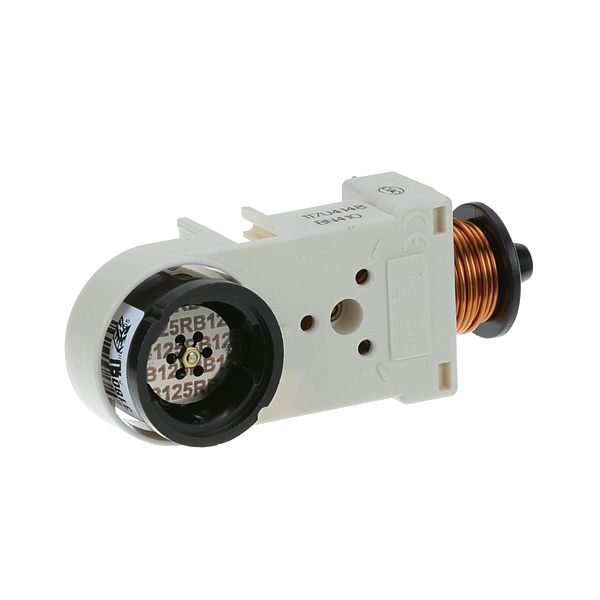

main product photo

Delfield 3516446 Compressor Relay/Overload Assembly

Rating:
5 5 1
1  Review Add Your Review
Special Price $31.29 Regular Price $33.95
In stock
SKU
3516446
Add to Wish List
Electrical & Hardware, Switches & Relays, Shop by manufacturers
Manufacturer:
The Delfield 3516446 Compressor Relay/Overload Assembly functions as an essential system component which protects refrigeration systems from reliable operation. The primary role of this component protects compressors against overload situations to safeguard equipment longevity. The unique strength of this relay comes from its carefully designed components and durable construction to deliver better performance in harsh food service environments. This assembly maintains 3.5 inches of length and 2 inches of width and height and works with different Delfield models thus providing operators versatile options for refrigeration unit reliability and efficiency.

Dimensions

  • Length: 3.5 In
  • Width: 2 In
  • Height: 2 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/d/e/delfield-3516446-compressor-relay-overload-assembly-59764-2.jpg
Manufacturer Name: Delfield
Product Number: 3516446
OEM Part Number: 3516446
Product Description: Relay,Compressor - Overload
Similar Models:351-6446 - Delfield
Dimensions:
Length:3.5in/8.89cm
Width:2in/5.08cm
Height:2in/5.08cm
Weight:0.1lbs/45.36g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or contact@partsfe.com

Replaces Parts
DELFIELD:
351-6446, 3516446, DEL3516446
Reviews 1
Write Your Own Review
You're reviewing:Delfield 3516446 Compressor Relay/Overload Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Delfield 3516446 Compressor Relay/Overload Assembly?

Inspect the relay/overload assembly regularly for loose wiring, overheating marks, or corrosion. Keep surrounding compressor components clean and free from dust buildup to ensure proper airflow and electrical performance. Disconnect power before servicing and replace damaged connectors or worn electrical parts promptly.

What are common issues with the Delfield 3516446 Compressor Relay/Overload Assembly?

  • Compressor failing to start or cycling on and off rapidly.
  • Audible clicking sounds indicating a tripped overload.
  • Burnt or melted wire terminals.
  • Inconsistent cooling due to intermittent electrical continuity.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power at unit and unplug to secure from shock, and secure zero voltage with a meter.

Step2: Remove access panel and locate compressor terminals and relay mounting area.

Step3: Detach old relay/overload noting wire positions and take photo for reference.

Step4: Install new assembly matching terminal layout firmly and align correctly.

Step5: Secure connections and ensure overload is seated properly and insulated.

Step6: Reassemble panel, restore power, test compressor operation safely.
