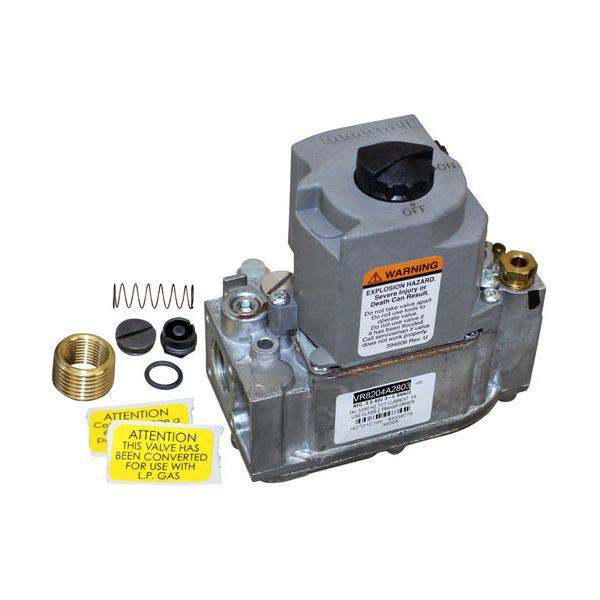

Frymaster 8100787 NAT/LP Gas Safety Valve 1/2" 24V W/1/2" X 3/8" Bushing
Special Price $228.75 Regular Price $352.48
In stock
SKU
8100787
Manufacturer:
The Frymaster 8100787 Natural to LP Gas Safety Valve operates as an electrically actuated interruption point within the fuel circuit. A 24V input creates magnetic movement inside the housing, lifting the internal sealing element and permitting passage when the control system requests fuel. Without the electrical signal, the sealing element returns against its seat and blocks the route. The threaded 1/2" interface connects with the larger supply line, whereas the supplied reducer changes the opposite side from 1/2" to 3/8". Its configuration provides a controlled transition between supply and burner piping.
Dimensions
- Length: 4.375 In
- Width: 5 In
- Height: 2.75 In
- Weight: 2.2 lbs
Product Notes
- [ Nat/Lp ] [ Size 1/2" ] [ Nat/Lp Safety ] [ 24 V ]
- [ Width 4-1/8" ] [[ Mfg# Vr8204A2076 ]
- Qty (1) 1/2" X 3/8" Bushing.
- Includes Nat To Lp Spring Kit # 51-1227
- Frymaster Model Fbcr18, Fbkr18, Fbr18, Fbra18, Fm47,
- Mj35, Mj47, Pmj35
