Genuine OEM Part

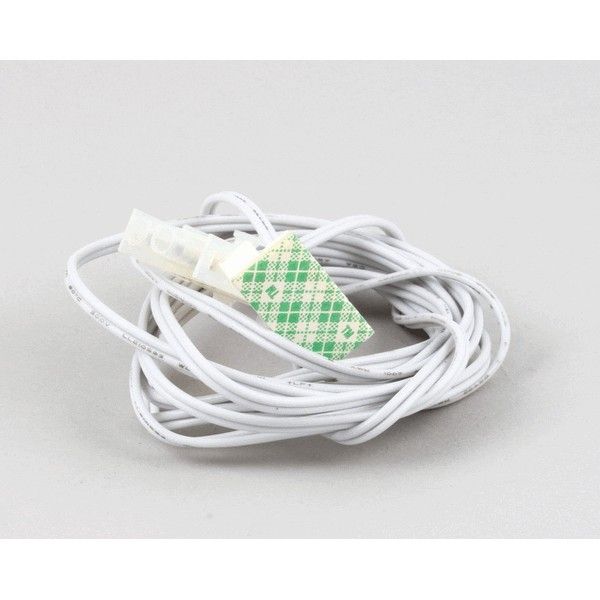

main product photo

Scotsman SC11-0563-06 Curtain Switch Left

Rating:
5 5 1
1  Review Add Your Review
Special Price $76.24 Regular Price $86.14
In stock
SKU
SC11-0563-06
Add to Wish List
Other Categories, Additional Parts, Curtains
Manufacturer:
The Scotsman SC11-0563-06 Curtain Switch Left identifies the type of ice chute or door by closing or opening a circuit of electricity when the curtain is operated. The switch is activated when curtain is raised or lowered to indicate to the control operator to turn on or off dispensing operations as designed. It is mounted to left of the dispense section of compatible ice machines, and it is the curtain mechanism. This switch is to be replaced when it cannot be operated or is not able to indicate position changes when it is operating normally.

Dimensions

  • Length: 8 In
  • Width: 1 In
  • Height: 0.5 In
  • Weight: 0.069 lbs
https://partsfe.com/media/catalog/product/s/c/scotsman-sc11-0563-06-curtain-switch-left-87952.jpg

Product Notes

  • Material: Plastic
  • Length: 6' | 1829 mm
  • Includes: 2 Female Pin Connectors
  • Type: Left
  • Note: Used With Fmp# 502-1004
Reviews 1
Write Your Own Review
You're reviewing:Scotsman SC11-0563-06 Curtain Switch Left
Your Rating
FAQS
Customer Questions
What maintenance is required for the Scotsman SC11-0563-06 Curtain Switch?

Inspect the curtain switch for proper alignment and secure mounting. Clean any debris that may obstruct movement. Check wiring for damage or looseness. Ensure power is disconnected before servicing to avoid electrical shock or accidental activation.

What are common issues with the Scotsman SC11-0563-06 Curtain Switch?

  • Switch not activating when curtain moves.
  • Misalignment preventing proper engagement.
  • Electrical failure causing machine shutdown.
  • Intermittent operation due to worn internal contacts.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power to ice machine before starting installation to prevent electrical shock.

Step2: Remove front panel and locate existing curtain switch assembly.

Step3: Disconnect wiring harness carefully, noting terminal positions.

Step4: Remove old switch and mount new securely in left position.

Step5: Reconnect wiring harness as labeled.

Step6: Reinstall panel and restore power.

Step7: Test ice curtain operation for proper alignment and safety shutoff.
