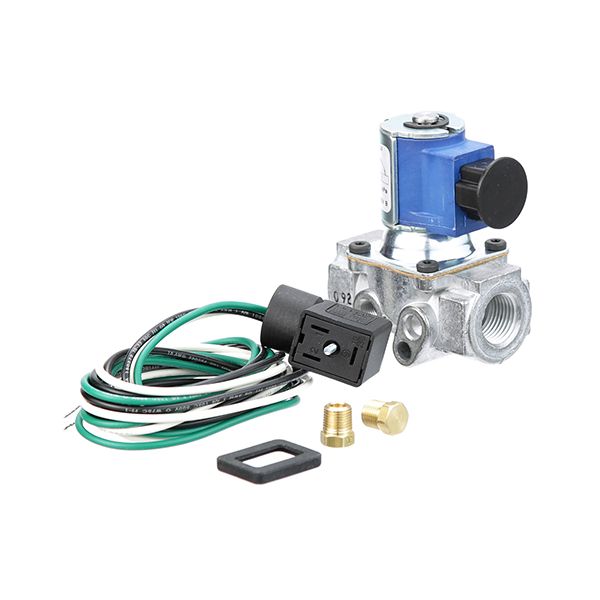

main product photo

Middleby Marshall 28091-0017 Oven Pilot Safety Valve W/ Reducing Bushings 3/4" FPT

Rating:
5 5 3
3  Reviews Add Your Review
Special Price $181.24 Regular Price $326.78
In stock
SKU
28091-0017
Add to Wish List
Plumbing Parts, Solenoid Valves,
Manufacturer:
The Middleby Marshall 28091-0017 Oven Solenoid Valve NAT/LP 1/2 PSI 1/2" NPT operates by regulating the supply of natural gas or liquid propane to the burner system of the oven. It operates by closing or opening the valve with an electromagnetic coil that can be easily controlled to control the amount of gas flowing during ignition and operation. This is a solenoid valve installed in the gas line assembly of the oven, usually between the gas supply and the burner manifold where it is necessary to maintain a accurate control of the gas to provide the same heating performance.

Dimensions

  • Length: 3.5 In
  • Width: 3 In
  • Height: 2 In
  • Weight: 0.71 lbs
https://partsfe.com/media/catalog/product/m/i/middleby-marshall-28091-0017-oven-pilot-safety-valve-w-reducing-bushings-3-4-fpt-38077-2.jpg

Product Notes

  • [ Gas Nat/Lp ] [ 1/2" Fpt Gas In/Out ] [ Nc ] [ 120 V]
  • [ Width 3" ] [ 1/8" Fpt Low Flame Bypass ]
  • Includes 1/8" Pipe Plug #26-2509.
  • [ Brand Baso ] [ Mfg# H91Da-8 ] ,
  • 120 V Coil S-142, # 51-1167
  • Henny Penny Fryer 600, Og- 301,302,303
  • Lincoln Oven Where Applicable
  • Middleby Marshall Oven Series:Ps200/222/224, Js250.
  • Ps250, Ps300, Ps310, Ps350, Ps360.
HENNY PENNY:
JOHNSON CONTROLS:
LINCOLN:
MIDDLEBY MARSHALL:
Reviews 3
Write Your Own Review
You're reviewing:Middleby Marshall 28091-0017 Oven Pilot Safety Valve W/ Reducing Bushings 3/4" FPT
Your Rating
FAQS
Customer Questions
What maintenance is required for the Middleby Marshall 28091-0017 Pilot Safety Valve?

Inspect the oven valve regularly for leaks, corrosion, or debris buildup. Clean components carefully and ensure proper seating of the valve. Check connections and test operation periodically. Always shut off gas or power before performing maintenance for safety.

What are the common issues with the Middleby Marshall 28091-0017 Pilot Safety Valve?

  • Valve is failing to open or close properly.
  • Gas leaks at the connection points.
  • Sticking or sluggish valve movement.
  • Inconsistent pilot ignition.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the gas supply before starting installation.

Step2: Locate the pilot safety valve in the gas system.

Step3: Disconnect the oven thermocouple and gas line connections.

Step4: Remove the existing valve from its position.

Step5: Install the new valve with correct alignment.

Step6: Reconnect all fittings securely.

Step7: Restore gas supply slowly.

Step8: Check for leaks and proper pilot operation.
