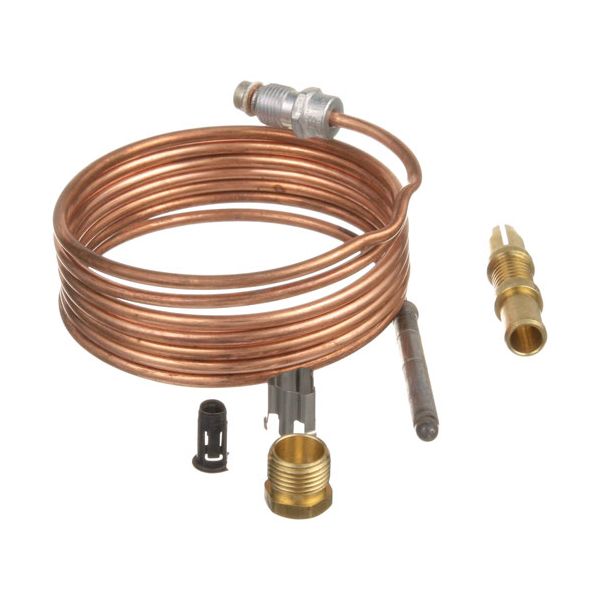

main product photo

Lang 80504-03 Thermocouple 60" 20-30MV 1980 Series

Be the first to review this product
Special Price $27.92 Regular Price $36.25
In stock
SKU
80504-03
Add to Wish List
Fryer Parts, Fryer Thermocouples,
Manufacturer:
The Lang 80504-03 Thermocouple 60" 20-30MV 1980 Series produces a millivolt signal to the pilot flame to enable it to check ignition and ensure the operation of the gas valve. It transforms thermal energy into a 20-30 millivolt electrical signal that maintains the safety circuit during the presence of the flame and disables the flow of gas during its loss. This thermocouple is fitted in the burner of compatible commercial cooking equipment of the 1980 Series, the sensing tip being in the pilot flame, and the lead attached to the gas control valve.

Dimensions

  • Length: 5 In
  • Width: 5 In
  • Height: 1 In
  • Weight: 0.3 lbs
https://partsfe.com/media/catalog/product/l/a/lang-80504-03-1980-series-thermocouple-60-20-30mv-62902-2.jpg

Product Notes

  • 1980 Series Snap Fit 60" Thermocouple, 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32.
  • Keating
  • Star
  • Vulcan
KEATING:
STAR MFG:
VULCAN HART:
Reviews
Write Your Own Review
You're reviewing:Lang 80504-03 Thermocouple 60" 20-30MV 1980 Series
Your Rating
FAQS
Customer Questions
What maintenance is required for the Lang 80504-03 Thermocouple?

Inspect the thermocouple regularly for damage, corrosion, or loose connections that can affect signal accuracy. Keep the sensing tip clean and properly positioned in the flame path for correct voltage output. Check wiring insulation for heat damage and secure all terminal connections. Replace if readings become unstable or inconsistent.

What are common issues with the Lang 80504-03 Thermocouple?

  • Weak or no millivolt signal output.
  • Pilot not staying lit due to failed thermocouple.
  • Corroded or damaged probe tip.
  • Loose or broken wiring connections.
  • Intermittent burner shutdown during operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas and electrical supply and allow the equipment to cool completely before servicing.

Step2: Remove the burner access panel and place the existing thermocouple near the pilot assembly.

Step3: Carefully disconnect the old thermocouple from the gas valve and mounting bracket without bending the lead.

Step4: Install the new snap-fit thermocouple, ensuring proper alignment of the threaded connection.

Step5: Secure all fittings, reposition the probe near the pilot flame, restore supply, and check stable millivolt output and bettert ignition operation.
