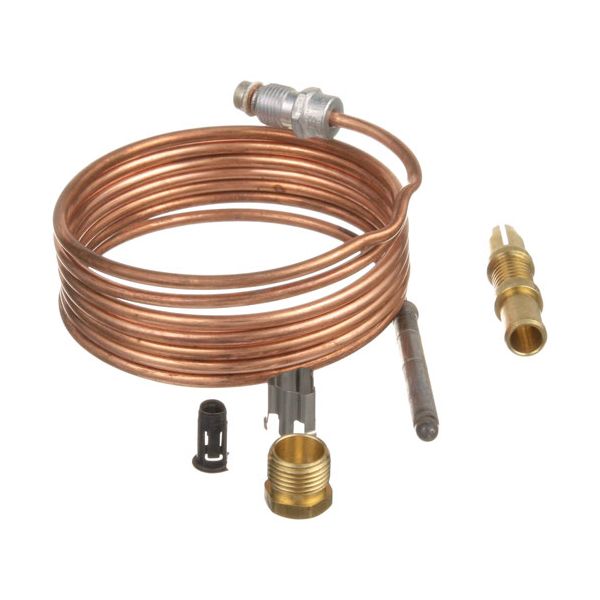

Vulcan Hart 00-722248 Thermocouple 60" 20-30MV 1980 Series

Be the first to review this product
Special Price $27.92 Regular Price $36.25
In stock
SKU
00-722248
Add to Wish List
Fryer Parts, Fryer Thermocouples, Shop by manufacturers
Manufacturer:
The Vulcan Hart 00-722248 Thermocouple uses the heat of the pilot flame to convert the heat into a small electrical signal of 20-30 millivolts to regulate the flow of gas in a safe manner. It measures the temperature variations at the burner and makes the gas valve open or close accordingly. The thermocouple is mounted close to the pilot assembly, and it reaches to the gas control system 60 inches. It is connected directly to the valve and ignition parts.

Dimensions

  • Length: 5 In
  • Width: 5 In
  • Height: 1 In
  • Weight: 0.3 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-00-722248-1980-series-thermocouple-60-20-30mv-63415-2.jpg

Product Notes

  • 1980 Series Snap Fit 60" Thermocouple, 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32.
  • Keating
  • Star
  • Vulcan
KEATING:
STAR MFG:
VULCAN HART:
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart 00-722248 Thermocouple 60" 20-30MV 1980 Series
Your Rating
FAQS
Customer Questions
What maintenance is required for the Vulcan Hart 00-722248 Thermocouple?

Regularly check the thermocouple for dirt, corrosion, or loose fittings that could affect signal output. Clean the sensing tip to maintain accurate flame detection. Ensure proper positioning within the pilot flame. Always turn off the gas supply before performing maintenance or adjustments.

What are common issues with the Vulcan Hart 00-722248 Thermocouple?

  • Weak or fluctuating millivolt output.
  • Improper placement in pilot flame.
  • Loose or worn connection fittings.
  • Heat damage or residue buildup on tip.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas and electrical supply and allow equipment to cool completely before servicing.

Step2: Remove access panel and place the existing thermocouple near the pilot assembly.

Step3: Disconnect the old thermocouple from the gas control valve.

Step4: Install the new thermocouple, ensuring correct routing away from heat and sharp edges.

Step5: Secure the sensing end in the pilot flame for stable millivolt output.

Step6: Restore supply and test ignition, confirming consistent flame sensing and operation.
