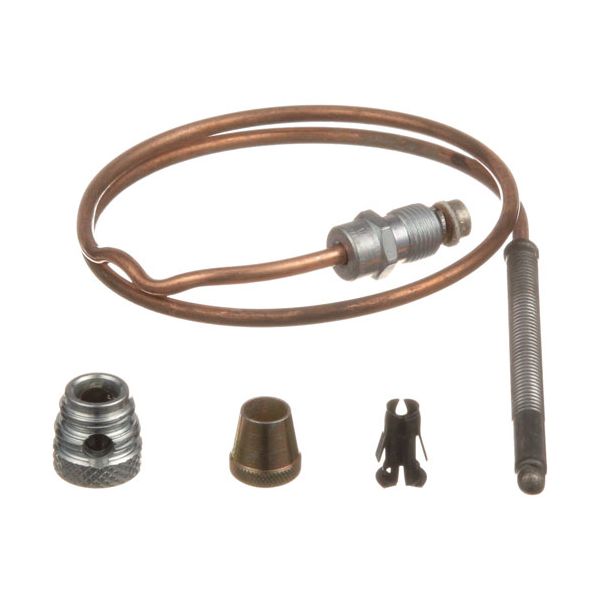

Tri-Star 310210 Oven Thermocouple 18" 1970 Series 20-30 MV

Be the first to review this product
Special Price $17.33 Regular Price $25.00
In stock
SKU
310210
Add to Wish List
Fryer Parts, Fryer Thermocouples,
Manufacturer:
The Tri-Star 310210 Oven Thermocouple 18 inch 20-30MV produces a small electrical signal when the sensing tip is heated by the pilot flame and can be used to detect the presence of the flame. It generates voltage as heat is applied, and this is used to communicate with the gas control system to control the burner. It is placed close to the pilot or burner assembly, compatible oven or cooking equipment, where it can be felt to be receiving direct heat lead is long enough to allow the be connected to the control module.

Dimensions

  • Length: 5.5 In
  • Width: 5 In
  • Height: 0.5 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/t/r/tri-star-310210-1970-series-18-thermocouple-20-30-mv-14967-2.jpg

Product Notes

  • 1970 Series, 18" Thermocouple, 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32.
  • American Range Model?
  • Imperial Oven Ir, Ihr
  • Garland Broiler 6-40/50S, 7-40/50S, 8-40/50S,
  • 60-40/50R, 76-40/50R, 78-40/50R.
  • Oven Series: Eco, Ico, Tg3/4, Ttg3/4.
  • Us Range Range Px-6-262-Cp, "S" Series Sunfire.
  • Tri-Star Oven
FAGOR:
IMPERIAL:
MARKET FORGE:
TRI-STAR:
Reviews
Write Your Own Review
You're reviewing:Tri-Star 310210 Oven Thermocouple 18" 1970 Series 20-30 MV
Your Rating
FAQS
Customer Questions
What maintenance is required for the Tri-Star 310210 Thermocouple?

The thermocouple is clean of soot and grease. Inspect the wiring for corrosion and ensure proper alignment with the pilot flame. This ensures the accurate operation of the heating appliance.

What are the common issues with the Tri-Star 310210 Thermocouple?

  • Flame detection failure.
  • Intermittent ignition.
  • Corrosion or loose wiring.
  • Incorrect positioning is affecting performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power and gas to the appliance to ensure safety.

Step2: Remove the old thermocouple by loosening the connection at the gas valve and pilot assembly.

Step3: Position the new thermocouple in the same location.

Step4: Secure the thermocouple with the provided fittings or screws.

Step5: Reconnect any wiring if applicable.

Step6: Restore power and gas and test the appliance to confirm proper flame sensing.
