Genuine OEM Part
main product photo

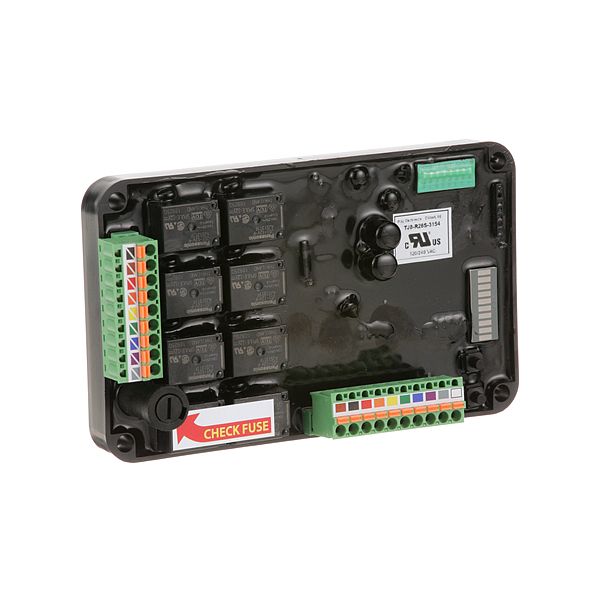

Jackson 6401-003-80-83 Universal Fused Timer Kit W/Bracket

Be the first to review this product
Special Price $744.89 Regular Price $1,207.95
In stock
SKU
6401-003-80-83
Add to Wish List
Other Categories, Additional Parts, Timers
Manufacturer:
The Jackson 6401-003-80-83 Universal Fused Timer Kit W/Bracket is an electrical circuit control that regulates the flow of power over a specified period of time and cuts off the current flow when the time cycle ends. The integrated fuse provides protection of the circuit by breaking, the connection in case of an overload or fault in operation. This is normally installed in the control panel or electrical compartment of compatible commercial equipment. The assembly has timed features like wash, rinse or delay cycles. Wiring terminals can be connected to the existing electrical systems according to the equipment requirements.

Dimensions

  • Length: 8.5 In
  • Width: 5.5 In
  • Height: 3 In
  • Weight: 1.9 lbs
https://partsfe.com/media/catalog/product/j/a/jackson-6401-003-80-83-timer-kit-w-wire-harnesses-screw-terminals-mounting-plate-83793-2.jpg

Product Notes

  • Comes With Wire Harnesses, Screw, Terminals, Mounting Plate
  • And Instructions
  • Jackson Tempstar (Hh, Lt, Nb, S, Sds)
More Information
Disable SaleableNo
Replaces Parts
JACKSON:
06401-003-80-83, 6401-003-80-83, 64010038083, JAC06401-003-80-83, JAC6401-003-80-83, JAC64010038083
Reviews
Write Your Own Review
You're reviewing:Jackson 6401-003-80-83 Universal Fused Timer Kit W/Bracket
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jackson 6401-003-80-83 Timer Kit?

Regularly inspect the timer kit and wire harnesses for loose connections, corrosion, or damage. Clean any dust or debris and ensure screws and terminals are secure. Proper maintenance ensures accurate timing, prevents electrical faults, and maintains safe dishwasher operation.

What are common issues with the Jackson 6401-003-80-83 Timer Kit?

  • Timer failing to advance or reset.
  • Loose or disconnected wires.
  • Corrosion on terminals or connectors.
  • Improper mounting causing misalignment or poor contact.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power to the appliance to ensure safety.

Step2: Remove the access panel to move the old timer and wiring.

Step3: Disconnect all wires and unscrew the old timer from its mount.

Step4: Install the new timer, reconnect wires to the terminals, and secure with screws.

Step5: Replace the panel, restore power, and test the appliance for proper timing function.
