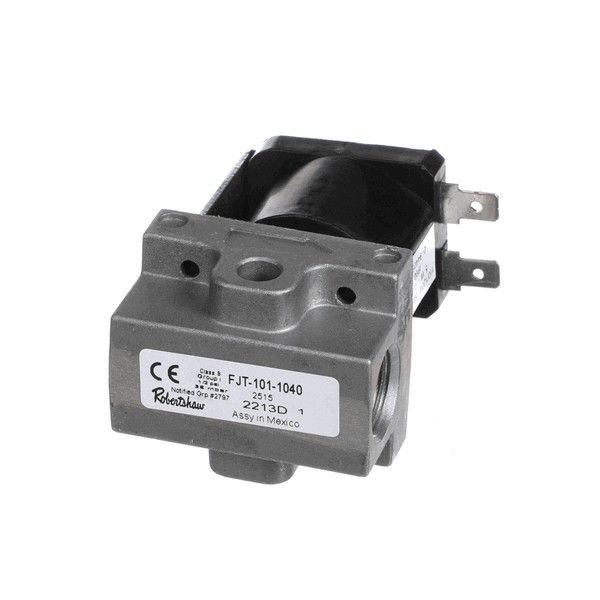

main product photo

Rankin Delux RD100-05 Griddle Gas Solenoid Valve 120V 50/60Hz

Be the first to review this product
Special Price $137.59 Regular Price $212.00
In stock
SKU
RD100-05
Add to Wish List
Griddle & Grill Parts, Gas Solenoid Valves,
Manufacturer:
The Rankin Delux RD100-05 Griddle Gas Solenoid Valve 120V 50/60Hz is an electromechanical gate that controls the flow of fuel to be directed to the burner assembly. When the thermostat requests the heating system to turn on, an electric current is supplied through the internal coil to generate a magnetic field, which pulls the plunger open and lets the fuel pass through the orifice. This is fitted in the manifold piping system that is situated behind the front operator screen of the commercial cooking surface. The unit is powered by standard 120V alternating current.

Dimensions

  • Length: 4 In
  • Width: 4 In
  • Height: 3 In
  • Weight: 0.54 lbs
https://partsfe.com/media/catalog/product/r/a/rankin-delux-rd100-05-solenoid-valve-98379.jpg

Product Notes

  • 120V, 3/8" Fpt In/Out, Nat/Lp, 60Hz, 5W, .05A, Wire Leads
  • Rankin Delux Rd-100
ALTO-SHAAM:
AMERICAN RANGE:
IMPERIAL:
MAGIKITCH'N:
PITCO:
RANDELL:
RANKIN DELUX:
STAR MFG:
Reviews
Write Your Own Review
You're reviewing:Rankin Delux RD100-05 Griddle Gas Solenoid Valve 120V 50/60Hz
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Rankin Delux RD100-05 Solenoid Valve?

Regularly inspect and clean valve body to prevent debris buildup. Check solenoid coil and electrical connections for corrosion or loose wiring. Replace worn seals and ensure alignment to avoid leaks and maintain performance.

What are common issues with the Rankin Delux RD100-05 Solenoid Valve?

  • Valve sticking due to debris buildup causing reduced or blocked flow.
  • Coil failure or overheating leading to no actuation or weak response.
  • Leakage from worn seals resulting in pressure loss.
  • Electrical connection faults causing intermittent operation or failure to open.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power and shut off fluid supply before starting.

Step2: Depressurize the system and remove the old valve.

Step3: Confirm flow direction and position the new valve correctly.

Step4: Apply thread sealant to fittings and connect lines.

Step5: Secure electrical connections per wiring specifications.

Step6: Restore supply and power, then test for leaks and operation.
