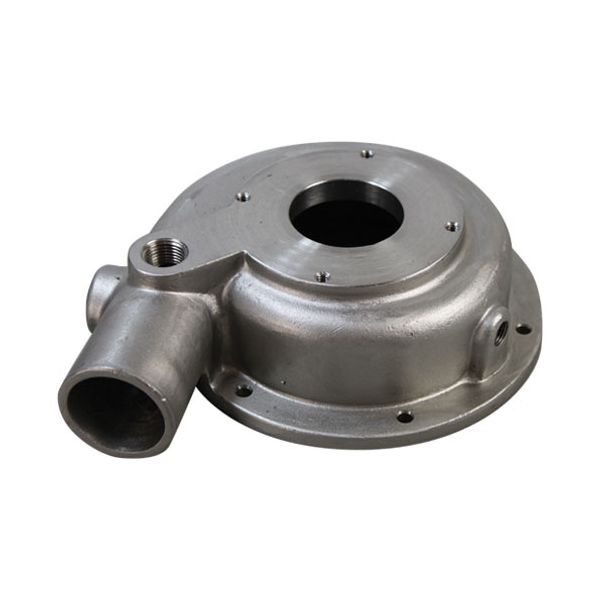

Champion 109651 Dishwasher Pump Volute
$146.80
Out of stock
SKU
109651
Manufacturer:
The Champion 109651 Dishwasher Pump Volute circulates water by directing fluid through a shaped nozzle housing that directs movement from the inlet toward the discharge path. The volute design converts rotational energy from the connected motor into fluid movement by creating a controlled passage around the impeller area. As water enters the housing, the internal channel regulates flow toward the outlet section during the wash cycle. The part operates within commercial cleaning equipment, where the pump assembly coordinates water movement through the circulation system.
Dimensions
- Length: 10 In
- Width: 11 In
- Height: 4 In
- Weight: 10.79 lbs
Product Notes
- Vlute Pump
- Champion Door Type Dish Machine D-H1, D-H1M4,
- D-H1M5, D-H1T, D-H1Tcm4, D-H1Tcm5, D-H1Tm4,
- D-H1Tm5, D-Hb, D-Hbm3, D-Hbm4, D-Hbm5, D-Hbt, D-Hbtcm4,
- D-Hbtcm5, D-Hbtm5, D-Lf, D-Lfm4, D-Lfm5
