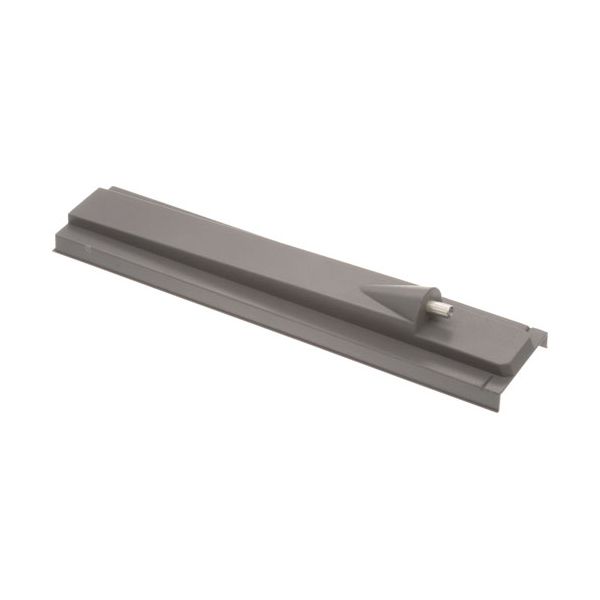

Delfield 000-BNH-0030 Evaporator Coil Drip Pan

Be the first to review this product
Special Price $104.78 Regular Price $222.00
In stock
SKU
000-BNH-0030
Add to Wish List
Ice Machine Parts, Evaporator Coils/Fans, Shop by manufacturers
Manufacturer:
The Delfield 000-BNH-0030 Evaporator Coil Drip Pan works by trapping the moisture that condenses and runs off the cooling tubes in cooling process. This element directs the built-up liquid to a drainage system to prevent stagnation of water in the cabinet or on the floor. The part is placed at the bottom of the evaporator assembly and is a key interface point between radiator hardware and the external plumbing. The unit is built using corrosion-resistant materials, and it is fitted to match some commercial food service models to ensure the proper airflow.

Dimensions

  • Length: 20.5 In
  • Width: 4.5 In
  • Height: 2.75 In
  • Weight: 0.6 lbs
https://partsfe.com/media/catalog/product/d/e/delfield-000-bnh-0030-evaporator-drip-pan-20-l-x-4-5-8-w-x-3-deep-70803-2.jpg

Product Notes

  • Evaporator Drip Pan
  • Blue Plastic, 20" L X 4-5/8" W X 3" Deep
  • Delfield 18648-Buc, 18648-Ptb, 18648Ptb, 18660-Buc,
  • 18660-Ptb, 18672-Buc, 18672-Ptb, 18691-Buc, 18691-Ptb,
  • 18699-Buc, 18699-Ptb, 18699Buc, 18699Ptb, 18Sc39R, 402, 403,
  • 406, 407, 6000Xl, 724, Ctb8146-Nb, Ctb8160-Nb, Ctb8175-Nb,
  • D4427N, F15Mc48D, F15Mc48N, F15Mc72D, F15Mc72N, F15Mr48D,
  • F15Mr48N, F15Mr72D, F15Mr72N, F15Pc48D, F15Pc48N, F15Pc72D,
  • F15Pc72N, F15Pr48D, F15Pr48N, F15Pr72D, F15Pr72N, F15Sc48D,
  • F15Sc48N, F15Sc72D, F15Sc72N, F15Sr48D, F15Sr48N, F15Sr72D,
  • F15Sr72N, F18Dc52, F18Dc60, F18Dc68, F18Dc72, F18Dc82,
  • F18Dc91, F18Dc99, F18Dr44, F18Dr52, F18Dr60, F18Dr70,
  • F18Dr79, F18Dr87, F18Fc62, F18Fc70, F18Fc78, F18Fc88,
  • F18Fr35, F18Fr50, F18Fr58, F18Fr66, F18Fr76, F18Mc39A,
  • F18Mc39D, F18Mc52A, F18Mc52D, F18Mc52E, F18Mc60A, F18Mc60D,
DELFIELD:
000-BNH-003-S, 000-BNH-0030, 000-BNH-0030-S, 000BNH0030, 039-231-0000, 075-231-0033, 39-231-0000, BNH0030, BNH0030S, DEL000-BNH-0030, DEL000-BNH-0030-S, DEL39-231-0000, DELBNH0030, DELBNH0030S
Reviews
Write Your Own Review
You're reviewing:Delfield 000-BNH-0030 Evaporator Coil Drip Pan
Your Rating
FAQS
Customer Questions
What are the Components of an Ice Machine?

An ice machine is a device that produces and stores ice. It is used by people who wish to have cold drinks or food at home, or by those who wish to have cold storage for their Refrigerators Parts. ParstFe is your one stop solution for Manitowoc, Scotsman...

Read More
How to Replace Evaporator Fan Motor in Ice Machine?

The Evaporator fan motor blows the air all over the evaporator coils and also through the refrigerator for cooling purposes. And it removes the heat in the circulating air. Commercial refrigeration applications use evaporator fan motors. Industrial...

Read More
What maintenance is required for the Delfield 000-BNH-0030 Drip Pan?

For optimal operation, regularly remove debris and buildup from the drip pan and ensure proper drainage flow. Inspect for corrosion or cracks and clean with mild detergent. Keeping it clear prevents overflow and supports efficient condensate handling.

What are common issues with the Delfield 000-BNH-0030 Drip Pan?

  • Cracks or punctures causing water leaks.
  • Overflow due to blocked drain passages.
  • Warping leading to improper fit beneath the evaporator coil.
  • Excessive condensation accumulation causing water spillage.
  • Debris buildup restricting drainage and promoting ice formation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and allow unit to cool to avoid burns or electrical hazard.

Step2: Remove existing drip pan and clean mounting area thoroughly.

Step3: Align the Evaporator Drip Pan with brackets under evaporator coil.

Step4: Secure pan using existing fasteners or clips, ensuring level positioning for proper drainage.

Step5: Restore power and verify condensate flows into pan without leaks.

Step6: Inspect installation and ensure drip pan is firmly seated and stable before regular operation.
