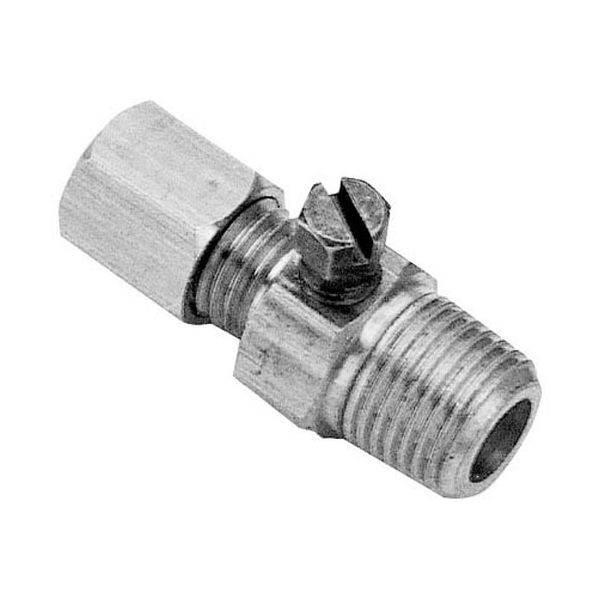

Garland 1086599 Pilot Valve 1/8" MPT X 3/16" CCT
$7.52
In stock
SKU
1086599
Manufacturer:
The Garland 1086599 Pilot Valve is used to control the flow of gas to the pilot burner by its internal valve mechanism. This is a part that is fitted into the gas control unit of commercial cooking equipment, usually between the gas supply and the pilot tubing. It has a 1/8" MPT inlet and a 3/16" CCT outlet to allow proper routing of gases in ranges, ovens, and other appliances that need ignition operation to use normal heating operations.
Dimensions
- Length: 0.5 In
- Width: 0.75 In
- Height: 1.5 In
- Weight: 0.1 lbs
Product Notes
- Pilot Adjustment Valve
- [ 1/8" Mpt X 3/16" Cct ] ] [Width 1-1/8"],
- Straight, Adjustable
- American Range
- Bakers Pride Broiler Ch10. Series: 50, Gg, Xx.
- Dynamic Cooking Systems Broiler Cheesemelter, Salamander.
- Garland Oven 60/40R, Stw286 & Where Applicable.
- Griddle Series: Gd
- Imperial Broiler Eba-3223. Series: Gd, Icb, Icma, Isb, Msq.
- Grill Series: Imga, Itg.
- Range Series: Icra, Isp-J, Ispa.
- Wolf Broiler Cmss Cheesemelter, Fshb & Hbss
- (Old F & Fs-855), Scb.
- Grill Gg, Stg.
