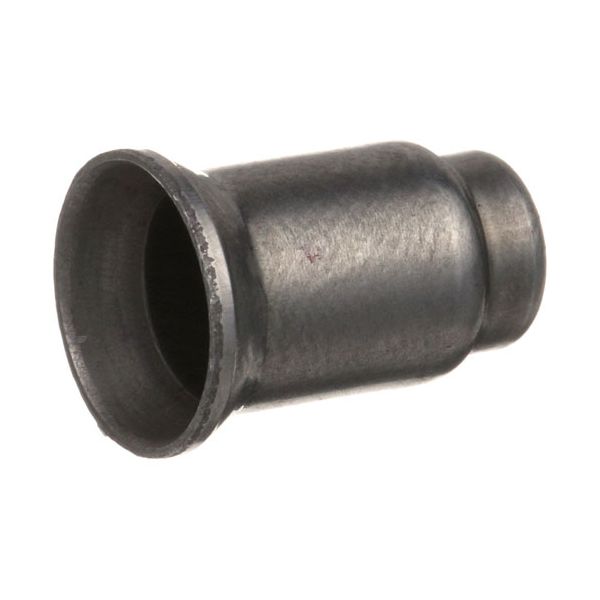

main product photo

American Range 11107 Pilot Orifice LP Gas 0.016"

Be the first to review this product
$9.14
In stock
SKU
11107
Add to Wish List
Griddle & Grill Parts, Gas Grill Orifices,
Manufacturer:
The American Range 11107 Pilot Orifice LP Gas is created to control the flow of liquid propane in cooking equipment. It has a 0.016" hole which aids in keeping a steady pilot flame to ensure burner ignition. This is an opening that is applied in restaurants, cafeterias and other commercial food services. It is installed in the pilot system and assists in the combustion by supplying the right amount of gas volume to allow the equipment to start smoothly and run as expected in the regular use of the kitchen.

Dimensions

  • Length: 0.5 In
  • Width: 0.25 In
  • Height: 0.5 In
  • Weight: 0.01 lbs
https://partsfe.com/media/catalog/product/a/m/american-range-11107-1-4-lp-pilot-orifice-372-x-530-38564-2.jpg

Product Notes

  • Lp Pilot Orifice, For 1/4" Pilots,
  • .016" Or #78 Hole,
  • .372" Dia X .530" Long
  • American Range Fryer
  • Blodgett Oven
  • Imperial Fryer Series If, Ihr, Ir
AMERICAN RANGE:
BLODGETT:
FRYMASTER:
GARLAND:
HENNY PENNY:
IMPERIAL:
ROYAL RANGE:
SOUTHBEND:
STAR MFG:
Reviews
Write Your Own Review
You're reviewing:American Range 11107 Pilot Orifice LP Gas 0.016"
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the American Range 11107 Pilot Orifice?

Keep the orifice clean and free from carbon or grease buildup that may restrict gas flow. Ensure proper seating in the pilot assembly. Verify a stable pilot flame and consistent ignition performance during repeated startup cycles without flame instability or delay.

What are the common issues with the American Range 11107 Pilot Orifice?

  • Pilot flame becoming slow.
  • Gas flow restriction occurring.
  • Ignition delay developing.
  • Orifice clogging over time.
  • Flame instability appearing.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and allow appliance to cool completely before servicing.

Step2: Remove burner assembly or access panel to reach pilot orifice.

Step3: Unscrew existing old orifice using correct driver; avoid damaging threads.

Step4: Install new pilot orifice securely and ensure correct alignment.

Step5: Reassemble components, restore gas supply, and check for leaks with soapy water solution; never use open flame.
