Southbend 1177545 Hot Surface Ignitor 24V
Special Price $102.73 Regular Price $227.61
In stock
SKU
1177545
Manufacturer:
The Southbend 1177545 Hot Surface Ignitor 24V is an alternative part that is installed in commercial cooking systems to start burners or heating coils. It performs with 24 volts and, when energized, heats up, allowing it to be used to start gas or fuel in the combustion chamber of the appliance. It is installed in the burner assembly and it is used in conjunction with the control system to ensure uniform start-up operation, as well as to ensure that there is correct flame initiation.
Dimensions
- Length: 3 In
- Width: 3 In
- Height: 6 In
- Weight: 0.08 lbs
Product Notes

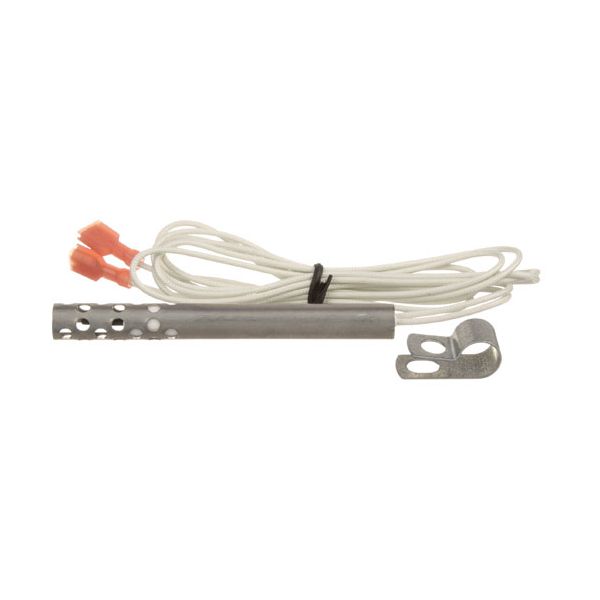

- Igniter, 3/8" X 4" Metal Tube With Ceramic Inside
- With Many Holes On End And Ignitor Bar Inside,
- 24V, Has 36" Leads With 1/4" F Push-Ons.
- Southbend Model: Gh10Sc. 08/97 & Newer Units.
- Slgs After 08/96
- Older Units Use F337, Ccc# F-294, # 441206
- 1St 2 Digits Of Serial # = Year
- Followed By A Letter = Month
- Example: 01H20877 = August 2001
