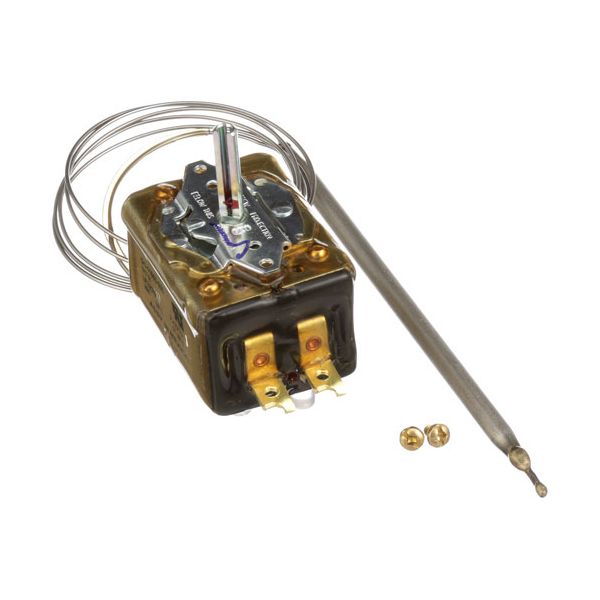

Cleveland 2234600 Thermostat 150°-550°F
Special Price $172.24 Regular Price $265.40
Out of stock
SKU
2234600
Manufacturer:
The Cleveland 2234600 Thermostat is an adjustable temperature-control part rated for a 150° to 550° range. It keeps track of heat in suitable cooking appliances and regulates the electrical circuit for the heating elements. It is designed to respond to temperature changes by its sensing mechanism and to switch the circuit to control heat based on the setting. It is housed in the control assembly of the appliance, and the sensing element is placed in a place where it will sense the operating temperature of the appliance. Its purpose is to assist in maintaining the desired temperature during cooking and in thermal control.
Dimensions
- Length: 7.5 In
- Width: 2 In
- Height: 3 In
- Weight: 0.7 lbs
Product Notes
- [ Ranco Type- G1 ] [ Temp 150-550 ] [ Bulb 1/4" X 6" ]
- [ Cap 36" ] D-Stem Flat Right
- [ For Dial Use # 22-1176 ] Pointer Knob
- [ 1-1/8" Dia ] [ Pointer] [Mount .190" ] [ Flat Right ]
- Cleveland
- Skillet F30Gl, F40E-1, Sgl-(T,X), Sgm-(T,X), Set10, Set15.
- Garland
- Braising Pan F30E, F30Gl, F40E.
