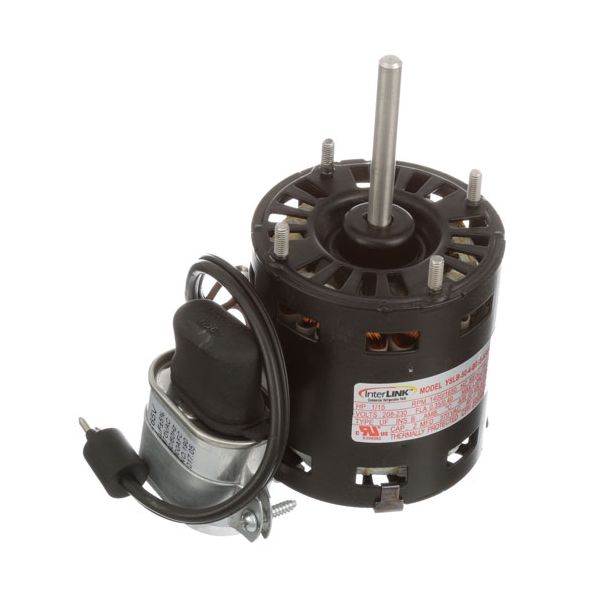

Heatcraft 25300201 Evaporator Fan Motor CWSE 208V

Be the first to review this product
Special Price $196.92 Regular Price $278.13
In stock
SKU
25300201
Add to Wish List
Electrical & Hardware, Fans & Blower Motors, Shop by manufacturers
Manufacturer:
Heatcraft 25300201 Evaporator Fan Motor provides dependable cooling capabilities for refrigeration systems through its design. The efficient motor functions at 208/230 V AC while consuming 1.0/.84 amps to generate 1550 RPM airflow. The clockwise shaft rotation of this motor makes installation easier and allows it to work with multiple cooling systems. The steel construction enables this partto work in compact spaces to its dimensions of 3" length and 3 1/4" width. The motor functions perfectly as an essential evaporator fan solution for various models.

Dimensions

  • Length: 8.5 In
  • Width: 6.25 In
  • Height: 5 In
  • Weight: 4.22 lbs
https://partsfe.com/media/catalog/product/h/e/heatcraft-25300201-evaporator-fan-motor-cwse-208v-50294-2.jpg

Product Notes

  • Color: Black
  • Material: Steel
  • Weight: 3.85 Lb
  • Length: 3" | 76 mm
  • Width: 3 1/4" | 83 mm
  • Voltage: 208/230 V Ac
  • Amp: 1.0/.84
  • Phase: 1
  • Revolutions Per Minute: 1550
  • Type: 9 1/2" Cord And 2 3/8" Shaft
  • Rotation: Clockwise From Shaft End
HEATCRAFT:
Reviews
Write Your Own Review
You're reviewing:Heatcraft 25300201 Evaporator Fan Motor CWSE 208V
Your Rating
FAQS
Customer Questions
How to Replace Evaporator Fan Motor in Ice Machine?

The Evaporator fan motor blows the air all over the evaporator coils and also through the refrigerator for cooling purposes. And it removes the heat in the circulating air. Commercial refrigeration applications use evaporator fan motors. Industrial...

Read More
What maintenance is required for the Heatcraft 25300201 Evaporator Fan Motor?

Keep the motor clean and free of dust, grease, and ice buildup to ensure proper airflow and cooling efficiency. Regularly inspect electrical connections for tightness and signs of corrosion or overheating. Check mounting brackets and shaft alignment to reduce vibration. Ensure the fan blade rotates freely and replace the motor if abnormal noise or overheating occurs.

What are common issues with the Heatcraft 25300201 Evaporator Fan Motor?

  • Motor not starting due to electrical supply or wiring faults.
  • Reduced airflow caused by weak or inconsistent RPM performance.
  • Overheating from blocked ventilation or excessive load.
  • Excessive vibration from loose mounting or worn shaft components.
  • Intermittent operation due to internal winding or connection failure.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power to the refrigeration system and verify zero voltage.

Step2: Remove evaporator panel to access the existing fan motor assembly.

Step3: Label and disconnect motor wiring and grounding connections.

Step4: Remove mounting screws and carefully extract the old motor and fan blade.

Step5: Install the new motor in the same orientation.

Step6: Secure mounting hardware and reconnect wiring per diagram.

Step7: Restore power and confirm smooth, correct airflow and rotation.
